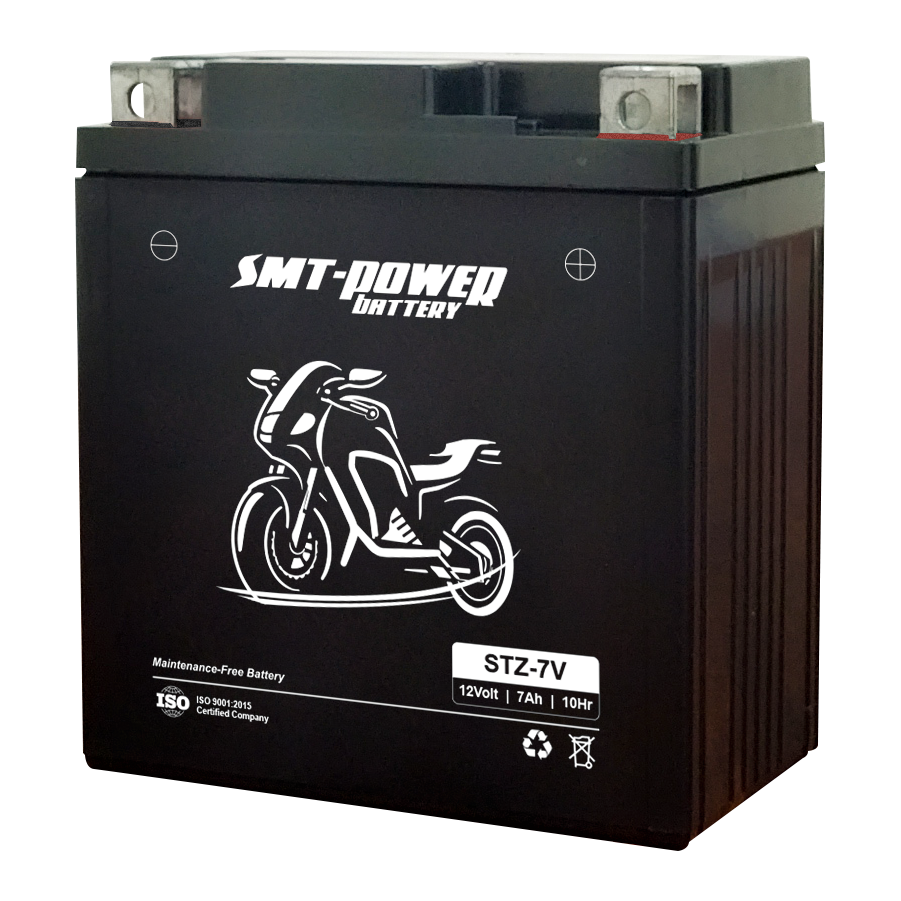

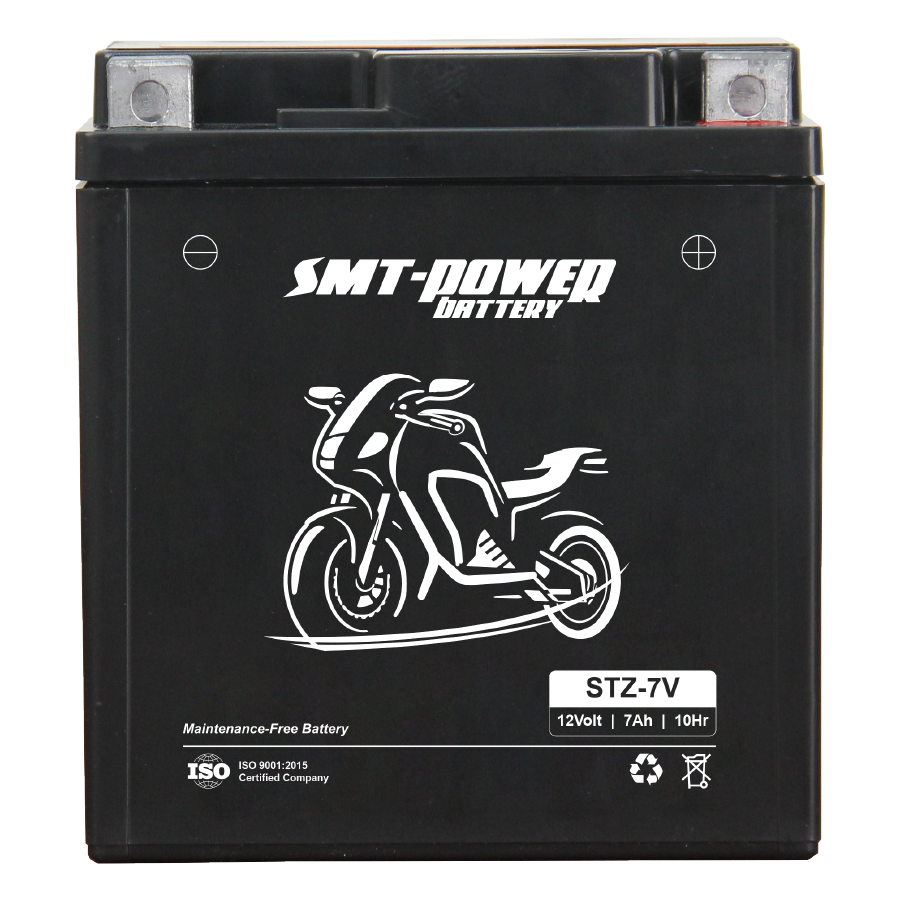

STZ-7V
SMT POWER BATTERY STZ-7V adalah aki kering 12V 7AH dengan performa kuat untuk motor berdaya tinggi. Cocok untuk motor touring, sport, dan matic besar yang membutuhkan suplai listrik stabil. Teknologi VRLA membuatnya bebas perawatan, awet, dan tahan cuaca. Desain kompak memudahkan pemasangan. Garansi resmi 6 bulan & siap kirim seluruh Indonesia. Biar aki tetap awet dan motor selalu siap distarter, baca juga artikel kami: 15 Penyebab Motor Tidak Bisa Distarter, Tak Hanya Soal Aki.
STZ-7V
Data Sheet Product
| Model No. | STZ-7V |
| Nominal Voltage | 12V |
| Rated Capacity (10 hours rate) | 7 Ah |
| Dimension | Length 113 mm Width 69 mm Height 122 mm Total Height 122 mm |
| Approx. Weight | 2.15 kg±3% |
| Charge Current (A) | 0.7 A (14.4V constant voltage charge) |
Electrical Specifications
| Capacity | 10 hours rate (0.7 A to 10.5V) – 7 Ah 5 hours rate (0.8 A to 10.2V) – 5.95 Ah 1C (7 A to 9.6V) – 3.15 Ah 3C (21 A to 9.6V) – 2.5 Ah |
| Cold Cranking Amperes (-18°C) | 80 A |
| Internal Resistance (at 1KHz) | Approx. 20m |
| Operating Temperature Range | Charge – 0° (32°F) to 40°C (104°F) Discharge – 30°C (-22°F) to 50°C (122ºF) Storage – -15° (5°F) to 40°C (104°F) |
| Life Expetancy (Cycle Use) | 60% depth of discharge 250 Cycles 30% depth of discharge 400 Cycles |
| Charge Retention (self-discharge life at 20°C (68°F) | 1 month = 92% 3 month = 90% 6 month = 80% |
| Warranty | 6 month |
| Case Material | ABS |
