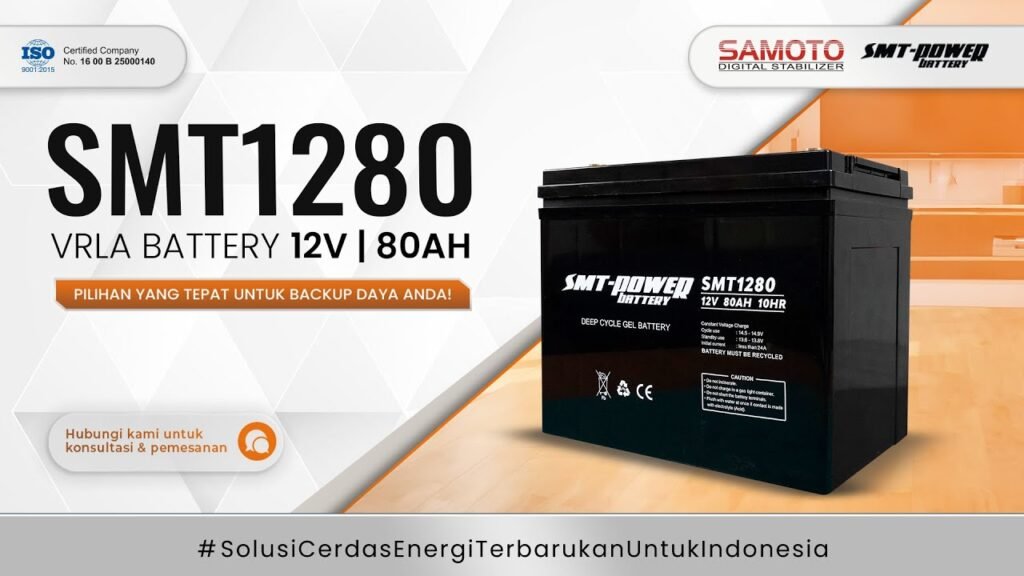

SMT-1280
SMT-1280
Data Sheet Product
| Nominal Voltage | 12V |
| Nominal Capacity | 80 Ah |
| Dimension | Length = 260 mm ± 1mm Width = 166 mm ± 1mm Height = 220 mm ± 1mm Total Height (with Terminal) = 223 mm ± 1mm |
| Approx. Weight | Approx ± 20.59 kg |
| Terminal | T6/T10 |
| Container Material | ABS |
| Rated Capacity | 75 AH/3.90A – (20hr, 1.80V/cell,25°C/77°F) 70 AH/7.0A – (10hr, 1.80V/cell,25°C/77°F) 63.7 AH/12.7A – (5hr, 1.75V/cell,25°C/77°F) 50.7 AH/16.9A – (3hr, 1.75V/cell,25°C/77°F) 41.2 AH/41A – (1hr, 1.60V/cell,25°C/77°F) |
| Max. Discharge Current | 840A (5s) |
| Internal Resistance | Approx 8m |
| Operating Temperature Range | Discharge = -15~50°C(5~122°F) Charge = 0~40°C(32~104°F) Storage = -15~40°C(5~104°F) |
| Nominal Operating Temperature Range | 25 ± 3°C (77±5°F) |
| Cycle Use | Initial Charging Current less than 21A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Stand by Use | No limit on initial Charging Current Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Temperature | 40ºC (104ºF) = 103% 25º (77ºF) = 100% 0º (32ºF) = 86% |
| Self Discharge | SMT Power battery may be stored for up to 6 months at 25ºC(77ºf) and battery should be recharge before use. For higher temperatures the time interval will be shorter |
