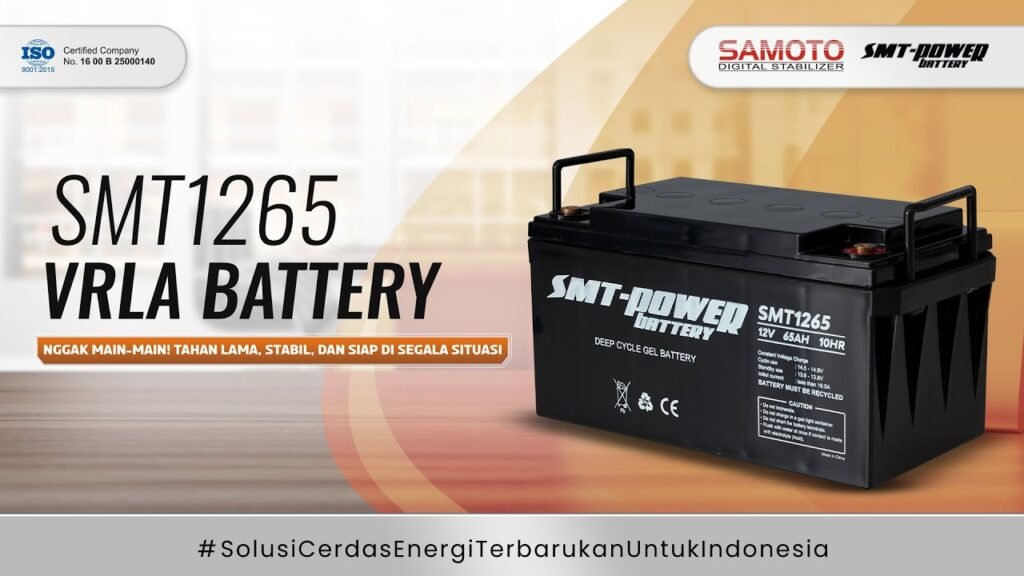

SMT-1265
SMT-1265
Data Sheet Product
| Nominal Voltage | 12V |
| Nominal Capacity | 65 Ah |
| Dimension | Length = 360 mm ± 1mm Width = 167 mm ± 1mm Height = 175 mm ± 1mm Total Height (with Terminal) = 180 mm ± 1mm |
| Approx. Weight | Approx ± 19.1 kg |
| Terminal | T6/T10 |
| Container Material | ABS |
| Rated Capacity | 67.6 AH/3.38A – (20hr, 1.80V/cell,25°C/77°F) 65.0 AH/6.50A – (10hr, 1.80V/cell,25°C/77°F) 56.0 AH/11.2A – (5hr, 1.75V/cell,25°C/77°F) 50.7 AH/16.9A – (3hr, 1.75V/cell,25°C/77°F) 39.7 AH/39.7A – (1hr, 1.60V/cell,25°C/77°F) |
| Max. Discharge Current | 780A (5s) |
| Internal Resistance | Approx 7.3m |
| Operating Temperature Range | Discharge = -15~50°C(5~122°F) Charge = 0~40°C(32~104°F) Storage = -15~40°C(5~104°F) |
| Nominal Operating Temperature Range | 25 ± 3°C (77±5°F) |
| Cycle Use | Initial Charging Current less than 19.5A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Stand by Use | No limit on initial Charging Current Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Temperature | 40ºC (104ºF) = 103% 25º (77ºF) = 100% 0º (32ºF) = 86% |
| Self Discharge | SMT Power battery may be stored for up to 6 months at 25ºC(77ºf) and battery should be recharge before use. For higher temperatures the time interval will be shorter |
