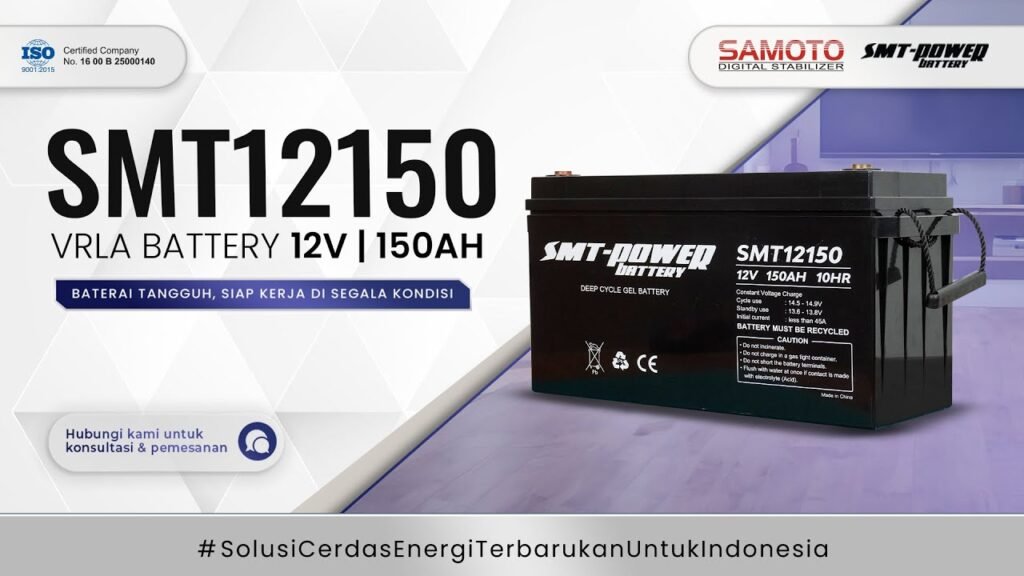

SMT-12150

SMT-12150

Data Sheet Product

Nominal Voltage 12V
Nominal Capacity 150 Ah
Dimension Length = 484 mm ± 1mm
Width = 170 mm ± 1mm
Height = 253 mm ± 1mm
Total Height (with Terminal) = 253 mm ± 1mm
Approx. Weight Approx ± 44.53 kg
Terminal T11
Container Material ABS
Rated Capacity 160.8 AH/8.04A – (20hr, 1.80V/cell,25°C/77°F)

150.0 AH/15.0A – (10hr, 1.80V/cell,25°C/77°F)

131.6 AH/26.3A – (5hr, 1.75V/cell,25°C/77°F)

119.3 AH/39.8A – (3hr, 1.75V/cell,25°C/77°F)

96.9 AH/96.9A – (1hr, 1.60V/cell,25°C/77°F)
Max. Discharge Current 1500A (5s)
Internal Resistance Approx 2.5m
Operating Temperature Range Discharge = -15~50°C(5~122°F)

Charge = 0~40°C(32~104°F)

Storage = -15~40°C(5~104°F)
Nominal Operating Temperature Range 25 ± 3°C (77±5°F)
Cycle Use Initial Charging Current less than 45.0A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C
Stand by Use
No limit on initial Charging Current Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C
Temperature 40ºC (104ºF) = 103%

25º (77ºF) = 100%

0º (32ºF) = 86%
Self Discharge SMT Power battery may be stored for up to 6 months at 25ºC(77ºf) and battery should be recharge before use. For higher temperatures the time interval will be shorter
