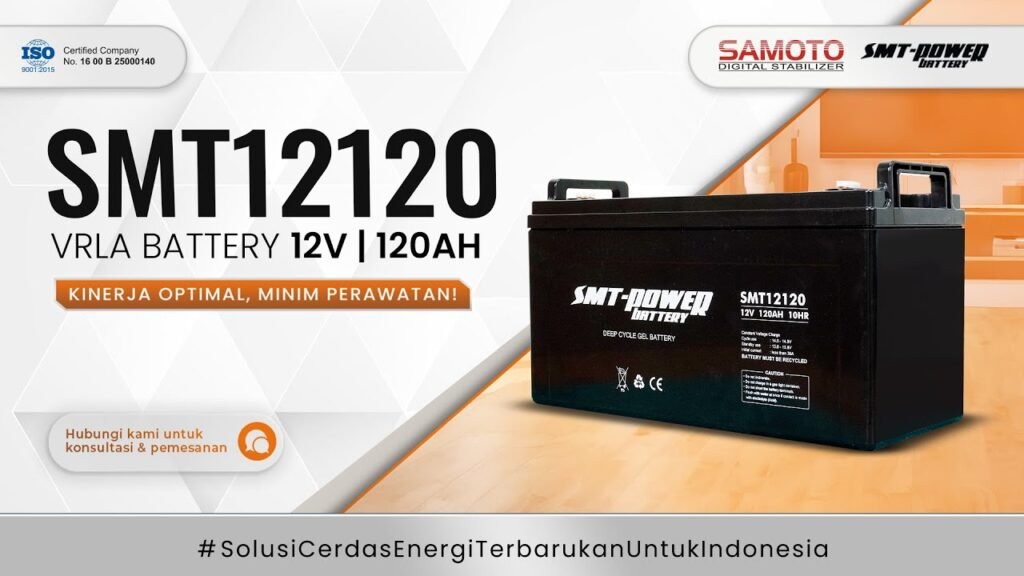

SMT-12120
SMT-12120
Data Sheet Product
| Nominal Voltage | 12V |
| Nominal Capacity | 120 Ah |
| Dimension | Length = 406 mm ± 1mm Width = 173 mm ± 1mm Height = 208 mm ± 1mm Total Height (with Terminal) = 238 mm ± 1mm |
| Approx. Weight | Approx ± 32.6 kg |
| Terminal | T11 |
| Container Material | ABS |
| Rated Capacity | 128.6 AH/6.43A – (20hr, 1.80V/cell,25°C/77°F) 120.0 AH/12.0A – (10hr, 1.80V/cell,25°C/77°F) 105.2 AH/21.0A – (5hr, 1.75V/cell,25°C/77°F) 95.4 AH/31.8A – (3hr, 1.75V/cell,25°C/77°F) 77.5 AH/77.5A – (1hr, 1.60V/cell,25°C/77°F) |
| Max. Discharge Current | 1300A (5s) |
| Internal Resistance | Approx 4.0m |
| Operating Temperature Range | Discharge = -15~50°C(5~122°F) Charge = 0~40°C(32~104°F) Storage = -15~40°C(5~104°F) |
| Nominal Operating Temperature Range | 25 ± 3°C (77±5°F) |
| Cycle Use | Initial Charging Current less than 36.0A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Stand by Use | No limit on initial Charging Current Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Temperature | 40ºC (104ºF) = 103% 25º (77ºF) = 100% 0º (32ºF) = 86% |
| Self Discharge | SMT Power battery may be stored for up to 6 months at 25ºC(77ºf) and battery should be recharge before use. For higher temperatures the time interval will be shorter |
