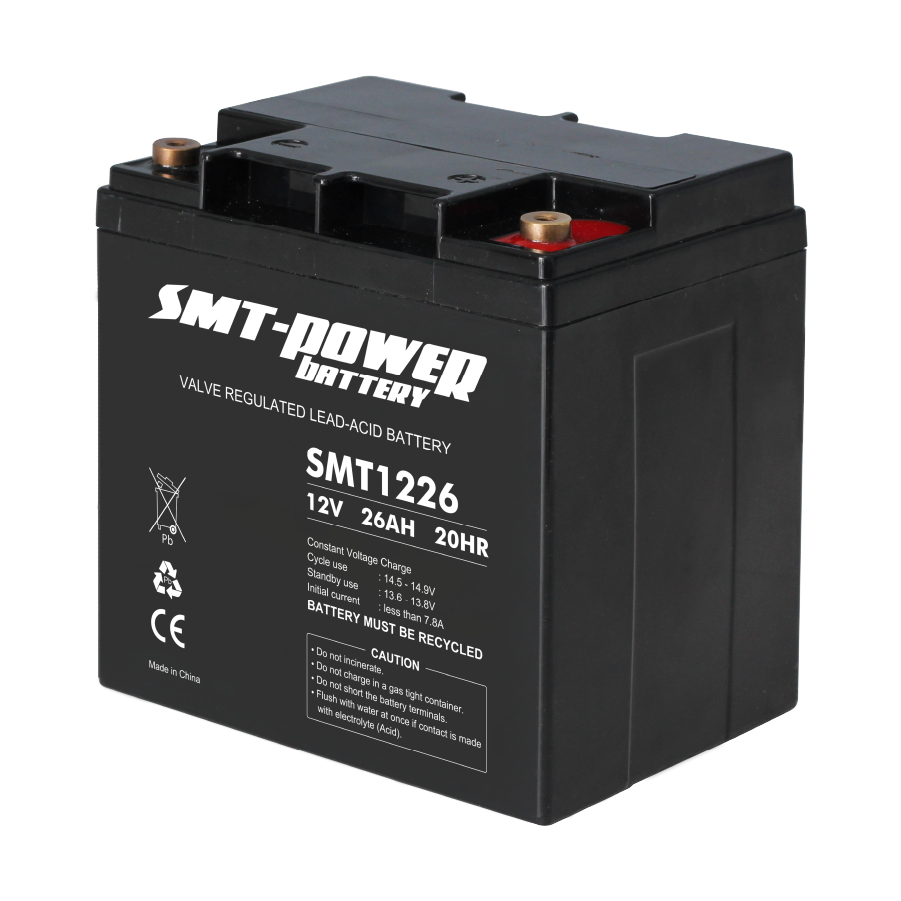

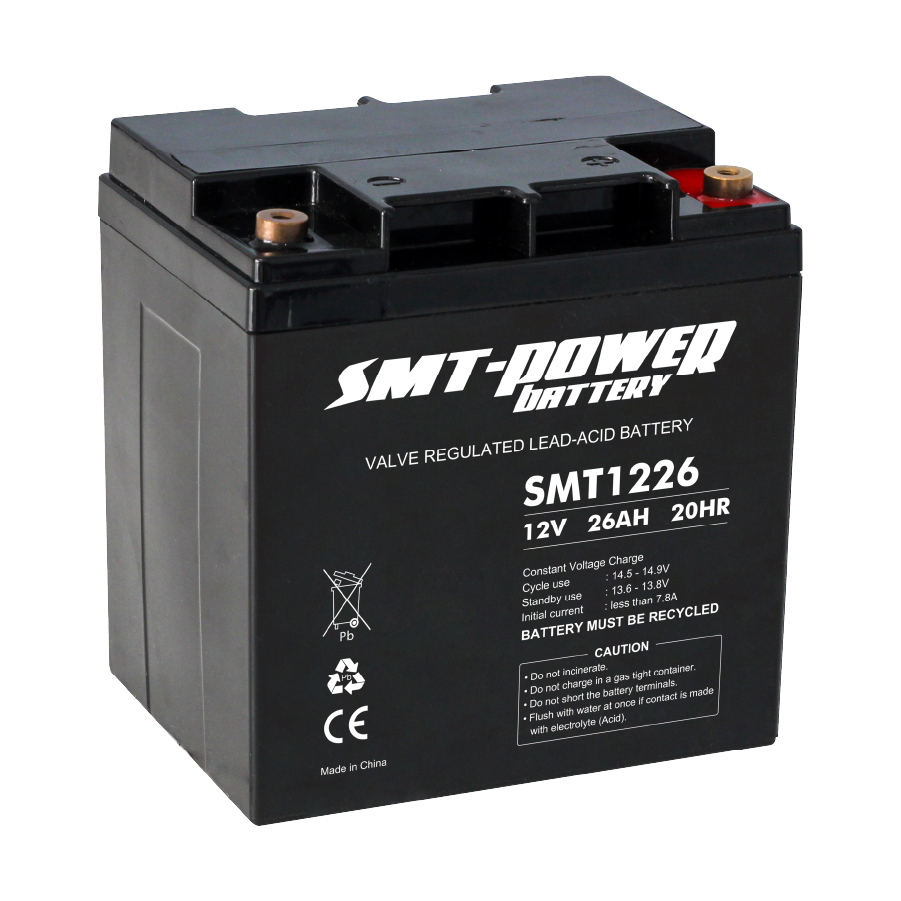

SMT-1226
SMT-1226
Data Sheet Product
| Nominal Voltage | 12V |
| Nominal Capacity | 26Ah |
| Dimension | Length = 165 mm Width = 125 mm Height = 169 mm Total Height (with Terminal) = 173 mm |
| Approx. Weight | Approx ± 7.04 Kg |
| Terminal | T3/T10/T12 |
| Container Material | ABS |
| Rated Capacity | 24.0 AH/1.20A – (20hr, 1.80V/cell,25°C/77°F) 22.3 AH/2.23A – (10hr, 1.80V/cell,25°C/77°F) 20.4 AH/4.08A – (5hr, 1.75V/cell,25°C/77°F) 18.4 AH/6.12A – (3hr, 1.75V/cell,25°C/77°F) 15.1 AH/15.1A – (1hr, 1.60V/cell,25°C/77°F) |
| Max. Discharge Current | 360A (5s) |
| Internal Resistance | Approx 15m |
| Operating Temperature Range | Discharge = -15~50°C(5~122°F) Charge = 0~40°C(32~104°F) Storage = -15~40°C(5~104°F) |
| Nominal Operating Temperature Range | 25 ± 3°C (77±5°F) |
| Cycle Use | Initial Charging Current less than 7.2A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Stand by Use | No limit on initial Charging Current Voltage 13.5V~13.8V at 25°C(77°F) Temp. Coefficient -20mV/°C |
| Temperature | 40ºC (104ºF) = 103% 25º (77ºF) = 100% 0º (32ºF) = 86% |
| Self Discharge | SMT Power battery may be stored for up to 6 months at 25ºC(77ºF) and battery should be recharge before use. For higher temperatures the time interval will be shorter |
