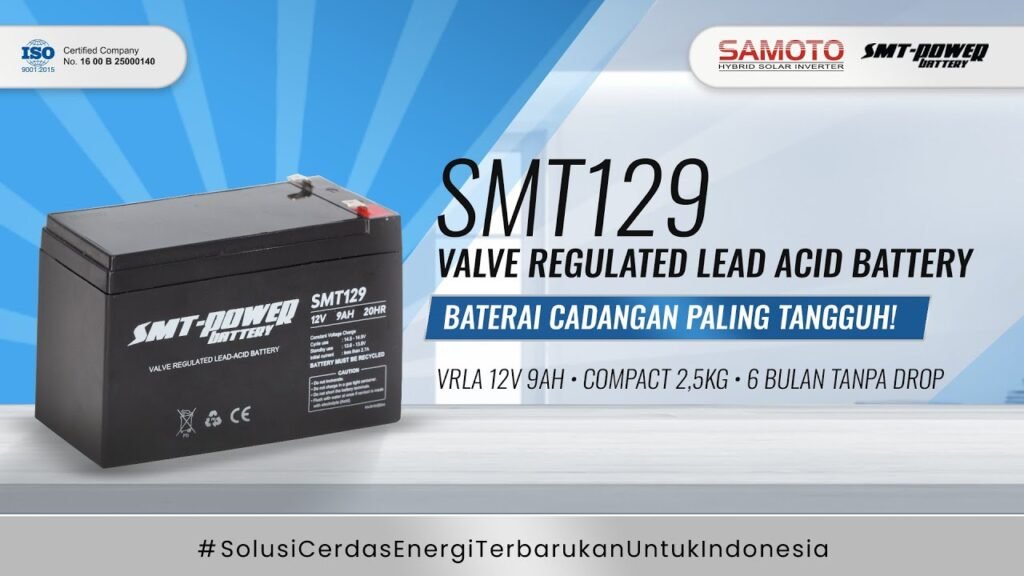

SMT-129
SMT-129
Data Sheet Product
| Nominal Voltage | 12V |
| Nominal Capacity | 9Ah |
| Dimension | Length = 151 mm Width = 65 mm Height = 94 mm Total Height (with Terminal) = 99 mm |
| Approx. Weight | Approx ± 2.38 Kg |
| Terminal | T1/T2 |
| Container Material | ABS |
| Rated Capacity | 7.00 AH/0.350A – (20hr, 1.80V/cell,25°C/77°F) 6.51 AH/0.651A – (10hr, 1.80V/cell,25°C/77°F) 5.95 AH/1.19A – (5hr, 1.75V/cell,25°C/77°F) 5.37 AH/1.79A – (3hr, 1.75V/cell,25°C/77°F) 4.40 AH/4.40A – (1hr, 1.60V/cell,25°C/77°F) |
| Max. Discharge Current | 105A (5s) |
| Internal Resistance | Approx 23m |
| Operating Temperature Range | Discharge = -15~50°C(5~122°F) Charge = 0~40°C(32~104°F) Storage = -15~40°C(5~104°F) |
| Nominal Operating Temperature Range | 25 ± 3°C (77±5°F) |
| Cycle Use | Initial Charging Current less than 2.1A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Stand by Use | No limit on initial Charging Current Voltage 13.5V~13.8V at 25°C(77°F) Temp. Coefficient -20mV/°C |
| Temperature | 40ºC (104ºF) = 103% 25º (77ºF) = 100% 0º (32ºF) = 86% |
| Self Discharge | SMT Power battery may be stored for up to 6 months at 25ºC(77ºf) and battery should be recharge before use. For higher temperatures the time interval will be shorter |
