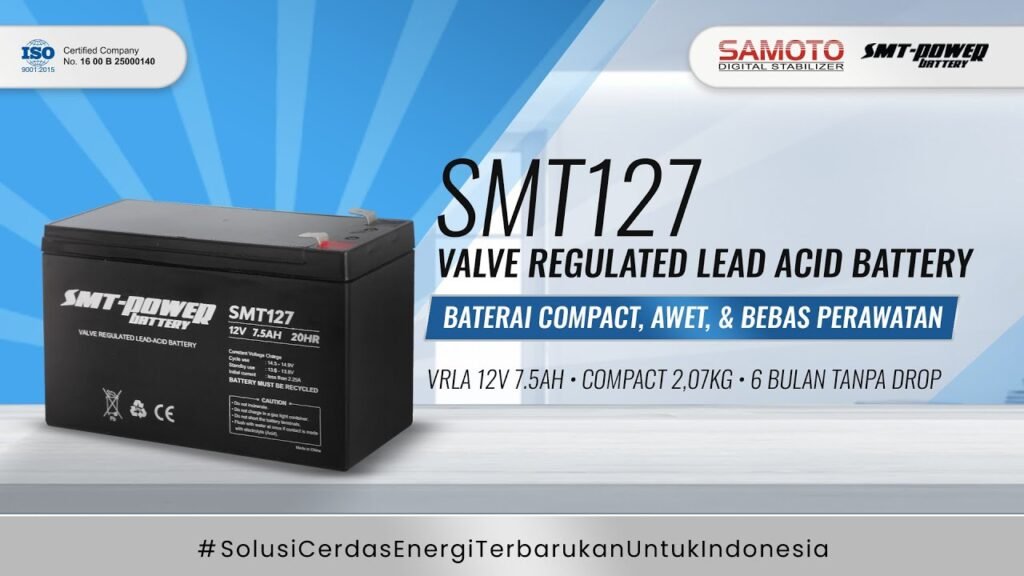

SMT-127
SMT-127
Specifications
| Nominal Voltage | 12V |
| Nominal Capacity | 7.5Ah |
| Dimension | Length = 151 mm Width = 65 mm Height = 94 mm Total Height (with Terminal) = 99 mm |
| Approx. Weight | Approx ± 2.01 Kg |
| Terminal | T1/T2 |
| Container Material | ABS |
| Rated Capacity | 12.0 AH/0.60A – (20hr, 1.80V/cell,25°C/77°F) 11.2 AH/1.12A – (10hr, 1.80V/cell,25°C/77°F) 10.2 AH/2.04A – (5hr, 1.75V/cell,25°C/77°F) 9.2 AH/3.06A – (3hr, 1.75V/cell,25°C/77°F) 7.54 AH/7.54A – (1hr, 1.60V/cell,25°C/77°F) |
| Max. Discharge Current | 180A (5s) |
| Internal Resistance | Approx 17m |
| Operating Temperature Range | Discharge = -15~50°C(5~122°F) Charge = 0~40°C(32~104°F) Storage = -15~40°C(5~104°F) |
| Nominal Operating Temperature Range | 25 ± 3°C (77±5°F) |
| Cycle Use | Initial Charging Current less than 3.6A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Stand by Use | No limit on initial Charging Current Voltage 13.5V~13.8V at 25°C(77°F) Temp. Coefficient -20mV/°C |
| Temperature | 40ºC (104ºF) = 103% 25º (77ºF) = 100% 0º (32ºF) = 86% |
| Self Discharge | SMT Power battery may be stored for up to 6 months at 25ºC(77ºf) and battery should be recharge before use. For higher temperatures the time interval will be shorter |
