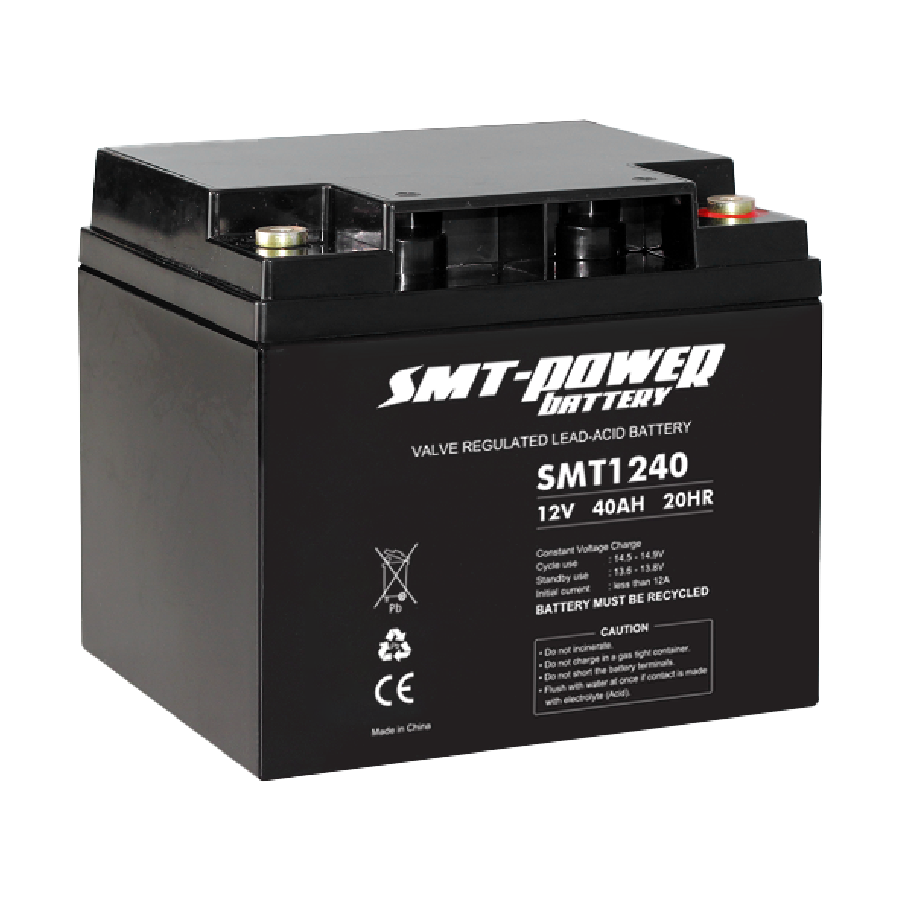

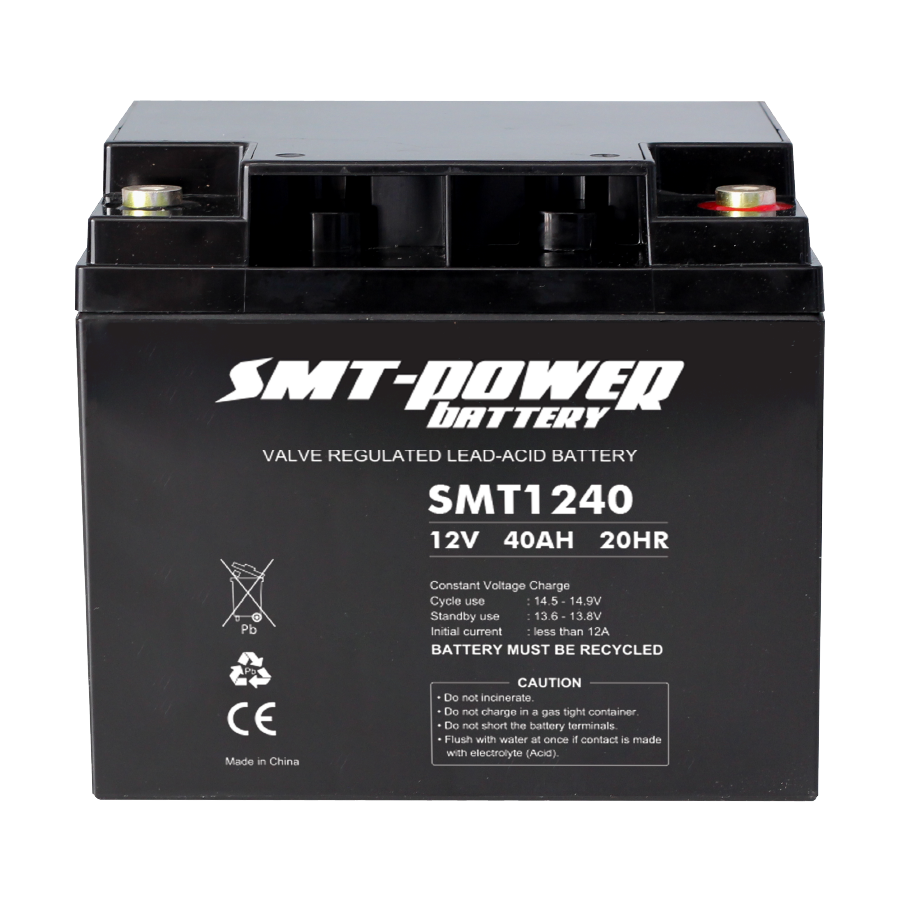

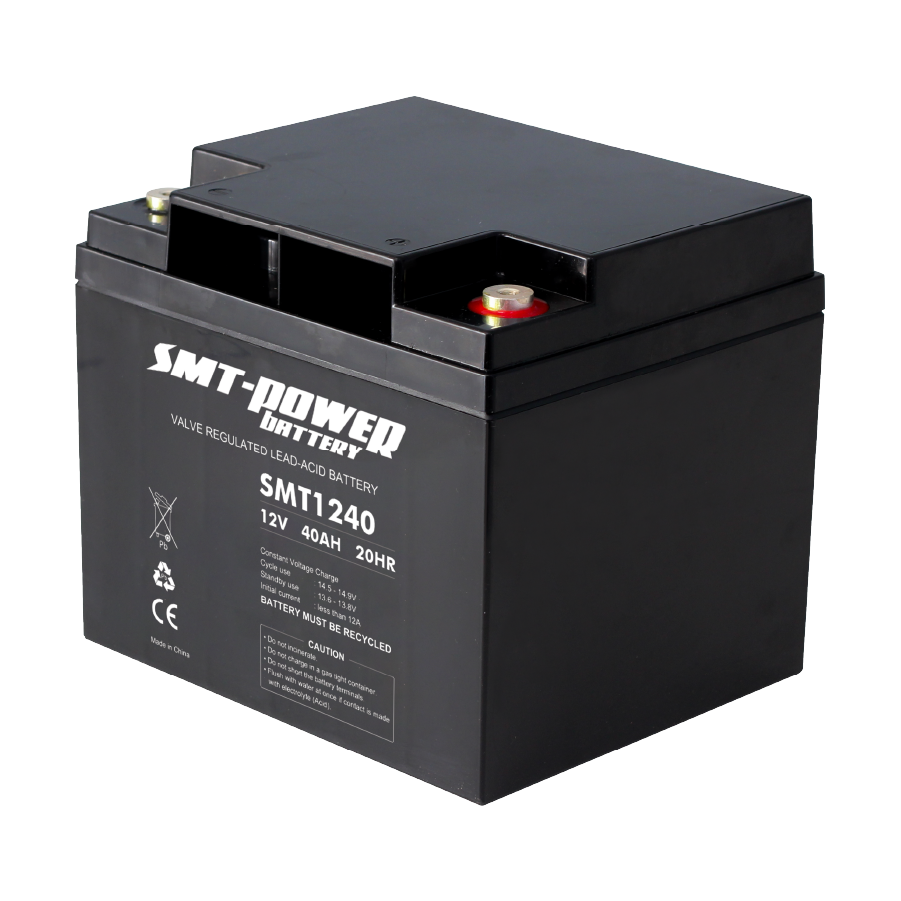

SMT-1240
SMT1240 dari Samoto Mega Teknologi adalah baterai VRLA 12V 40AH, ideal untuk UPS besar, kendaraan listrik, dan sistem tenaga surya industri. Kapasitas besar, discharge tinggi, dan desain tangguh memastikan pasokan daya stabil dan andal. Cocok untuk kebutuhan profesional dan industri. Garansi resmi 1 tahun. Pelajari lebih lanjut tentang Baterai VRLA Kapasitas Sedang sebagai solusi optimal untuk kebutuhan energi menengah di sini.
SMT-1240
Data Sheet Product
| Nominal Voltage | 12V |
| Nominal Capacity | 40Ah |
| Dimension | Length = 198 mm Width = 166 mm Height = 173 mm Total Height (with Terminal) = 173 mm |
| Approx. Weight | Approx ± 11.96 Kg |
| Terminal | T6/T12 |
| Container Material | ABS |
| Rated Capacity | 39.5 AH/1.976A – (20hr, 1.80V/cell,25°C/77°F) 38.0 AH/3.8A – (10hr, 1.80V/cell,25°C/77°F) 32.7 AH/6.55A – (5hr, 1.75V/cell,25°C/77°F) 29.7 AH/9.89A – (3hr, 1.75V/cell,25°C/77°F) 23.2 AH/23.2A – (1hr, 1.60V/cell,25°C/77°F) |
| Max. Discharge Current | 456A (5s) |
| Internal Resistance | Approx 10m |
| Operating Temperature Range | Discharge = -15~50°C(5~122°F) Charge = 0~40°C(32~104°F) Storage = -15~40°C(5~104°F) |
| Nominal Operating Temperature Range | 25 ± 3°C (77±5°F) |
| Cycle Use | Initial Charging Current less than 11.4A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Stand by Use | No limit on initial Charging Current Voltage 13.5V~13.8V at 25°C(77°F) Temp. Coefficient -20mV/°C |
| Temperature | 40ºC (104ºF) = 103% 25º (77ºF) = 100% 0º (32ºF) = 86% |
| Self Discharge | SMT Power battery may be stored for up to 6 months at 25ºC(77ºF) and battery should be recharge before use. For higher temperatures the time interval will be shorter |
