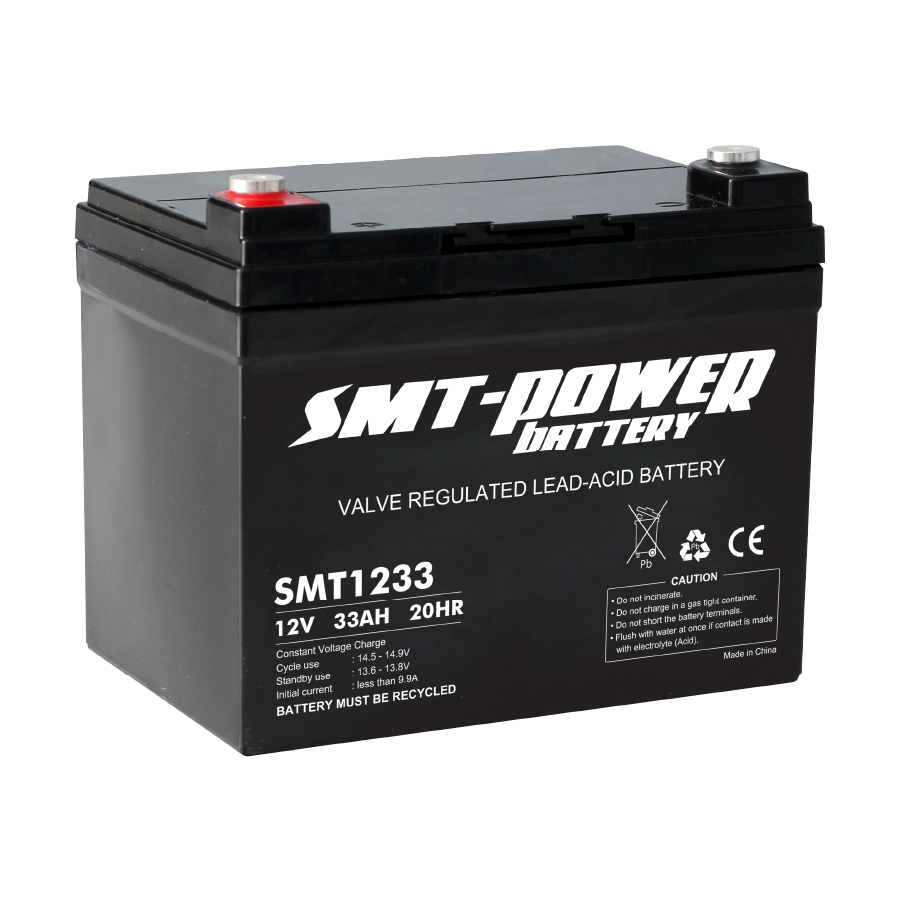

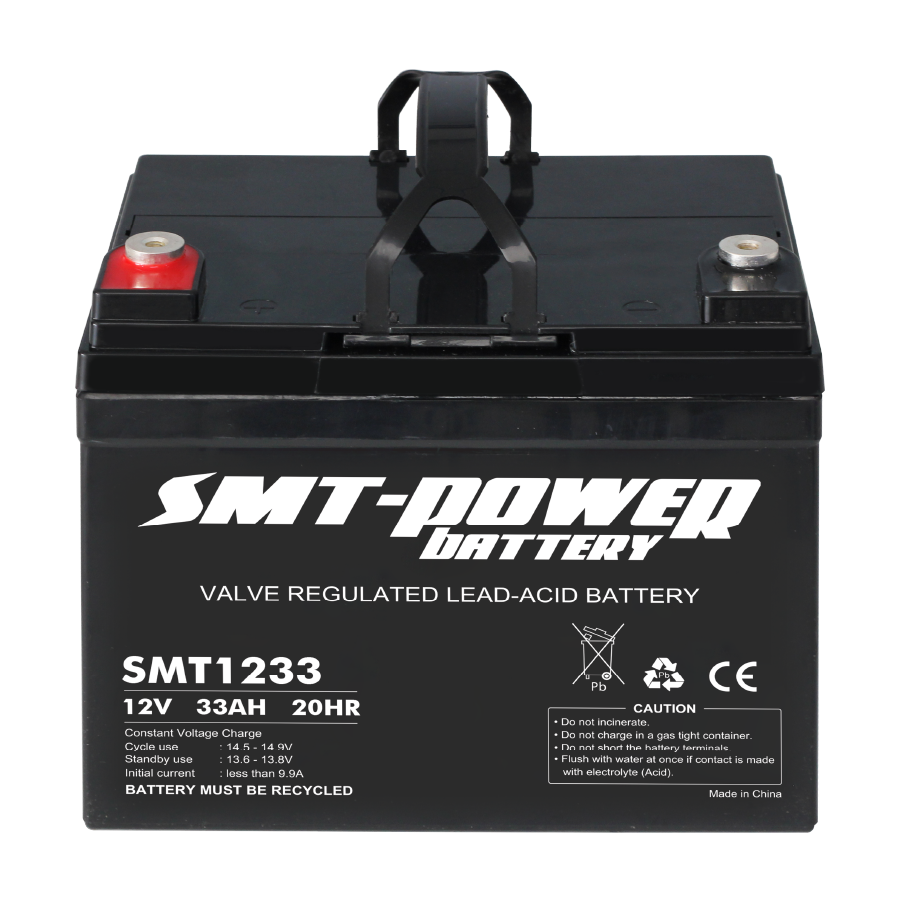

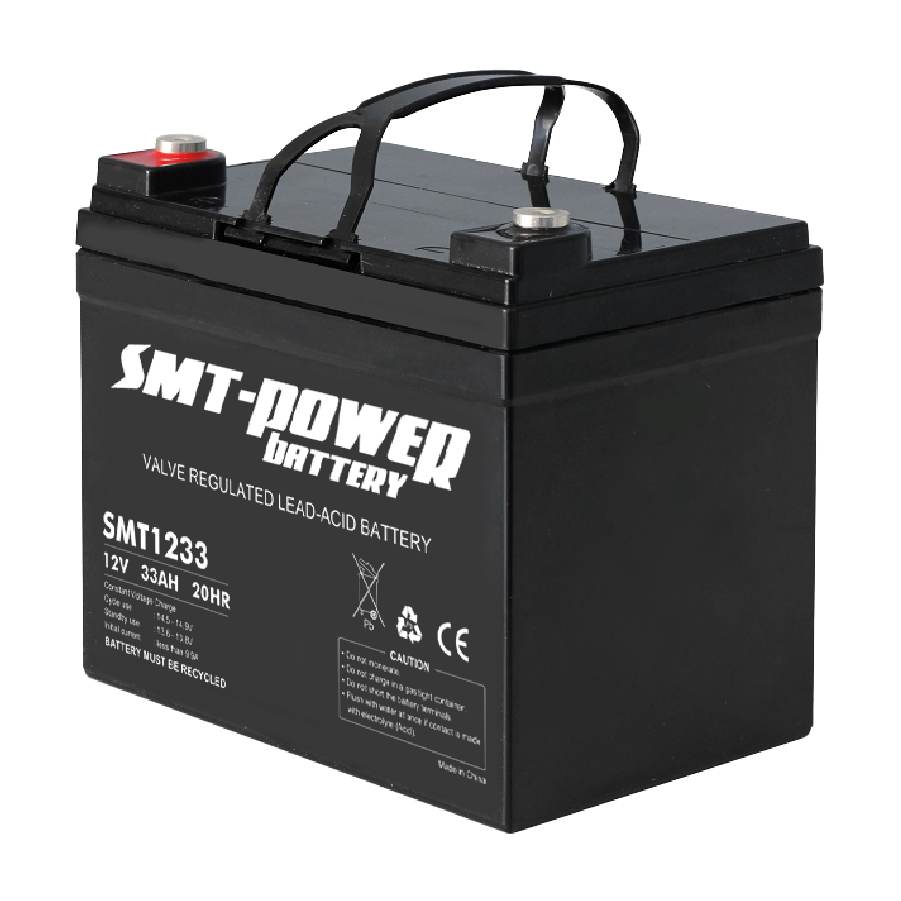

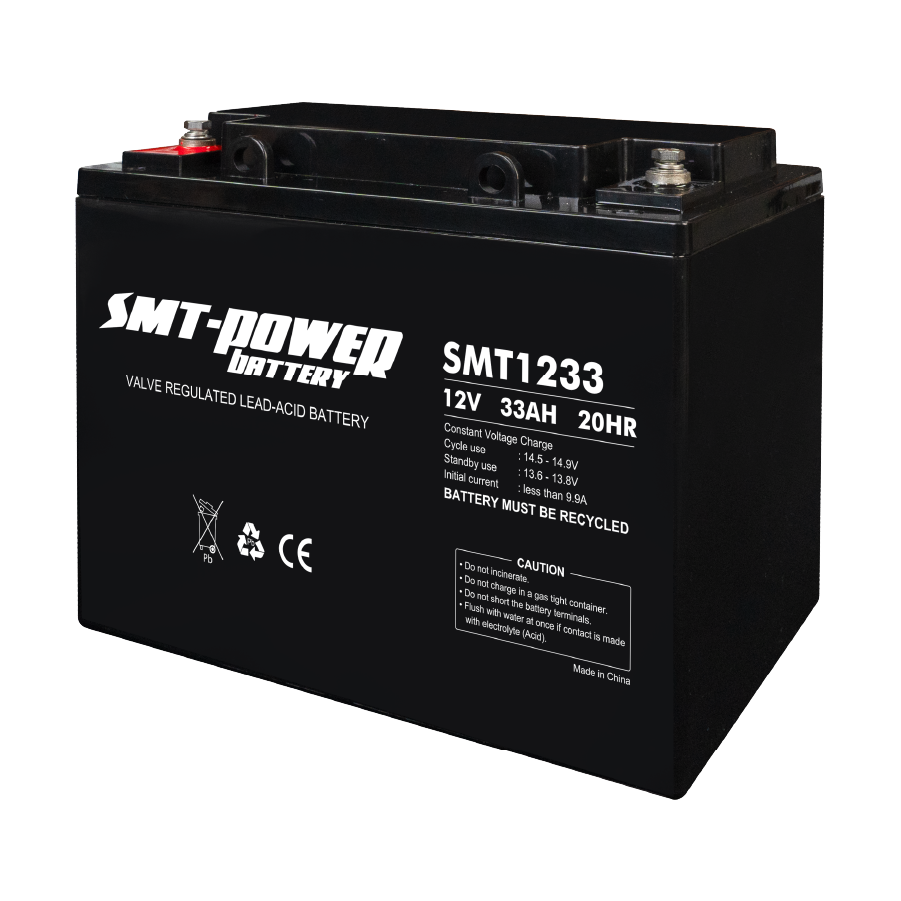

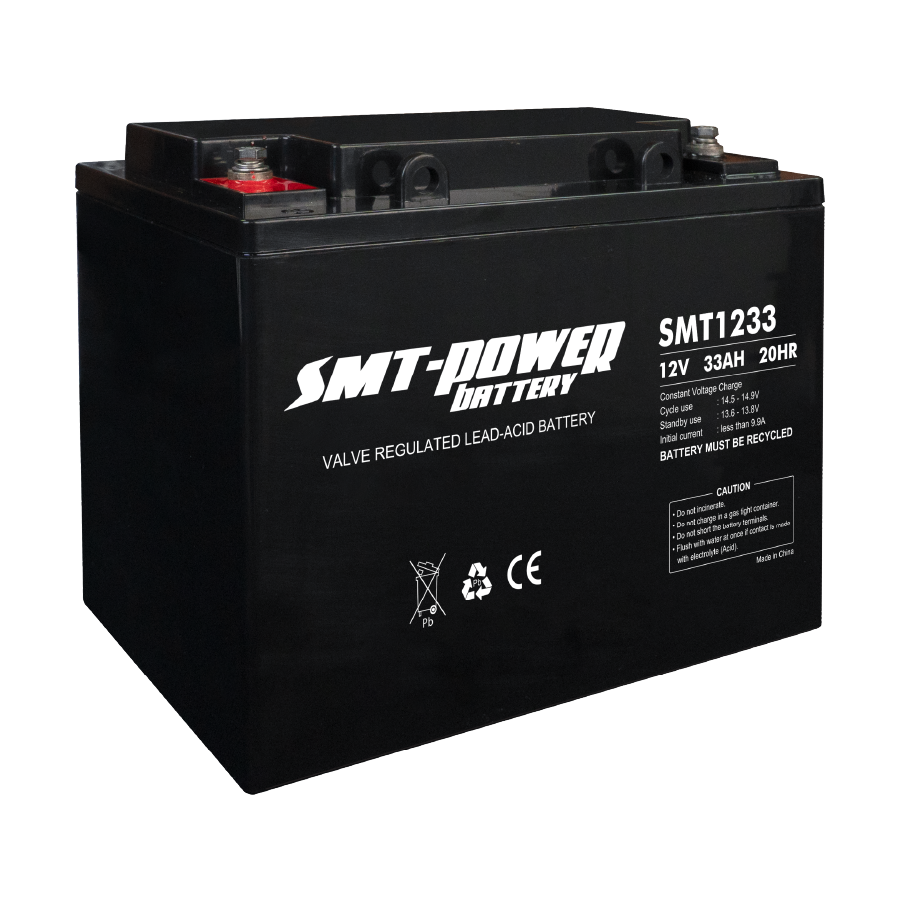

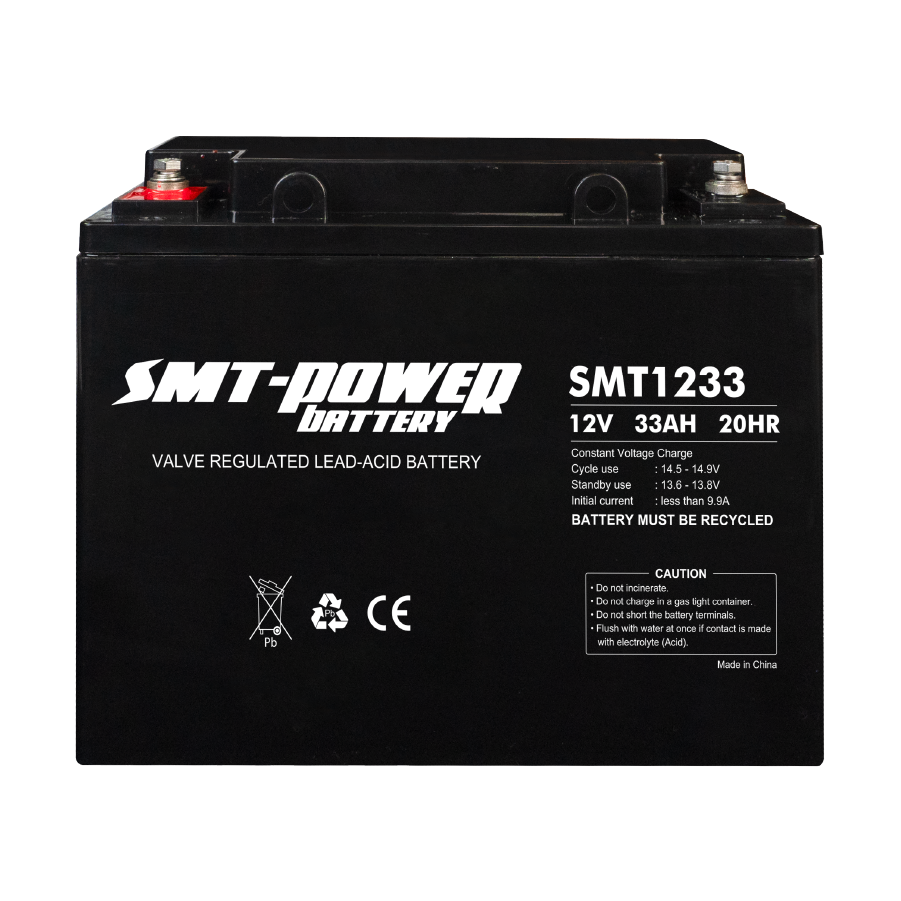

SMT-1233
SMT-1233
Specifications
| Nominal Voltage | 12V |
| Nominal Capacity | 33Ah |
| Dimension | Length = 195 mm Width = 130 mm Height = 166 mm Total Height (with Terminal) = 170 mm |
| Approx. Weight | Approx ± 9.56 Kg |
| Terminal | T6/T12 |
| Container Material | ABS |
| Rated Capacity | 34.5 AH/1.976A – (20hr, 1.80V/cell,25°C/77°F) 32.7 AH/3.8A – (10hr, 1.80V/cell,25°C/77°F) 29.7 AH/6.55A – (5hr, 1.75V/cell,25°C/77°F) 23.2 AH/9.89A – (3hr, 1.75V/cell,25°C/77°F) |
| Max. Discharge Current | 456A (5s) |
| Internal Resistance | Approx 10m |
| Operating Temperature Range | Discharge = -15~50°C(5~122°F) Charge = 0~40°C(32~104°F) Storage = -15~40°C(5~104°F) |
| Nominal Operating Temperature Range | 25 ± 3°C (77±5°F) |
| Cycle Use | Initial Charging Current less than 11.4A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Stand by Use | No limit on initial Charging Current Voltage 13.5V~13.8V at 25°C(77°F) Temp. Coefficient -20mV/°C |
| Temperature | 40ºC (104ºF) = 103% 25º (77ºF) = 100% 0º (32ºF) = 86% |
| Self Discharge | SMT Power battery may be stored for up to 6 months at 25ºC(77ºF) and battery should be recharge before use. For higher temperatures the time interval will be shorter |
