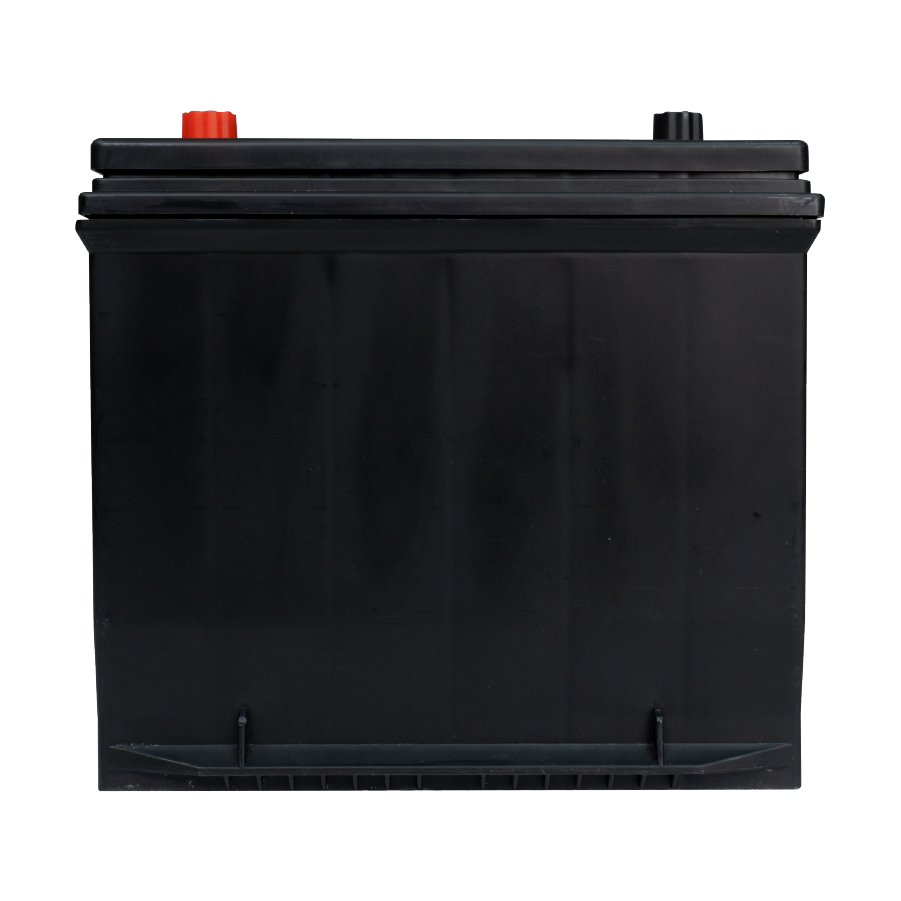

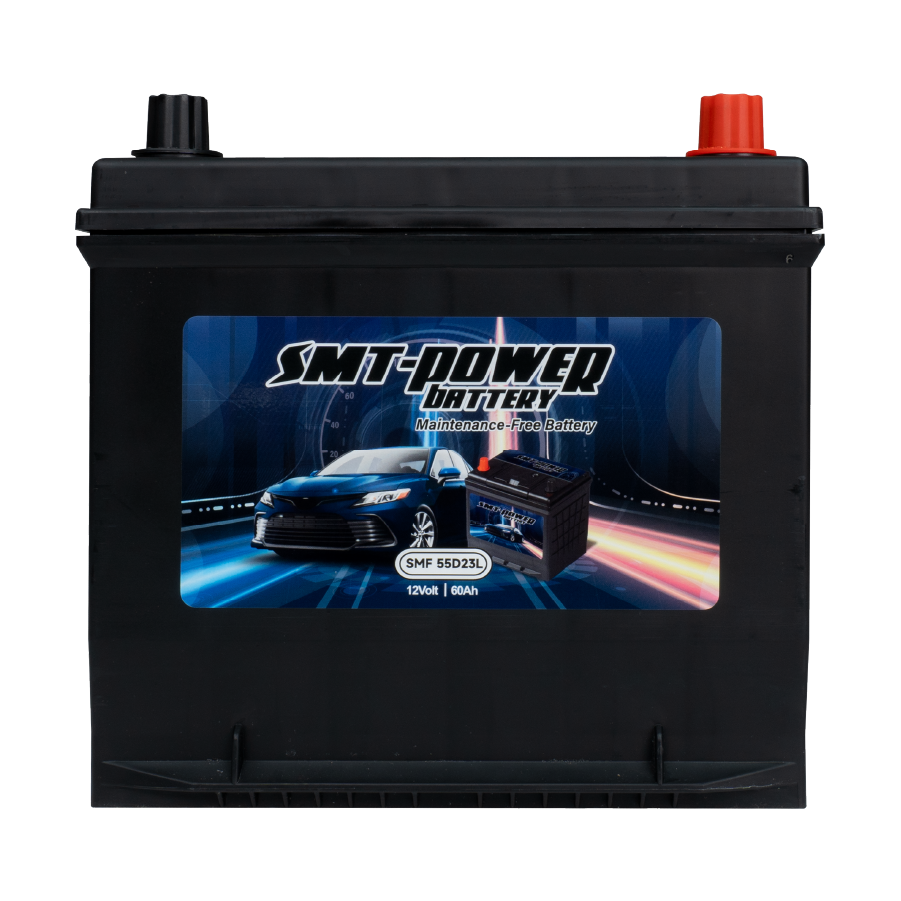

SMF 55D23L
SMF 55D23L
Data Sheet Product
| Model No. | 55D23L |
| Nominal Voltage | 12V |
| Rated Capacity (20hr to 10.5V @ 25°C) | 60 Ah |
| Dimension | Length 230 mm Width 172 mm Height 202 mm Total Height 223 mm |
| Approx. Weight | 14.7 kg ± 3% |
| Charge Current (A) | 4.9 A (13.8V constant voltage charge) |
| Max. Charge Current | 14.7 A |
Electrical Specifications
| Capacity 25°C(77°F) | 20 hours rate (2.45 A to 10.5V) – 49 Ah 5 hours rate (9.11 A to 10.2V) – 40 Ah 1C (45.5 A to 9.6V) – 22 Ah 3C (136.65 A to 9.6V) – 17 Ah |
| Cold Cranking Amperes (-18°C) | 480 A |
| Operating Temperature Range | Charge – -40°C to 60°C Discharge – -40°C to 60°C Storage – -15°C to 40°C |
| Best Use Temperature | 10°C to 30° |
| Max. Discharge Current | 490 A |
| Reserve Capacity | 86 min @ RC to 10.5 V @ 25°C |
| Charge Retention (self-discharge life at 20ºC (68°F) | 1 month = 92% 3 month = 90% 6 month = 80% |
| Warranty | 6 month |
| Case Material | PP |
