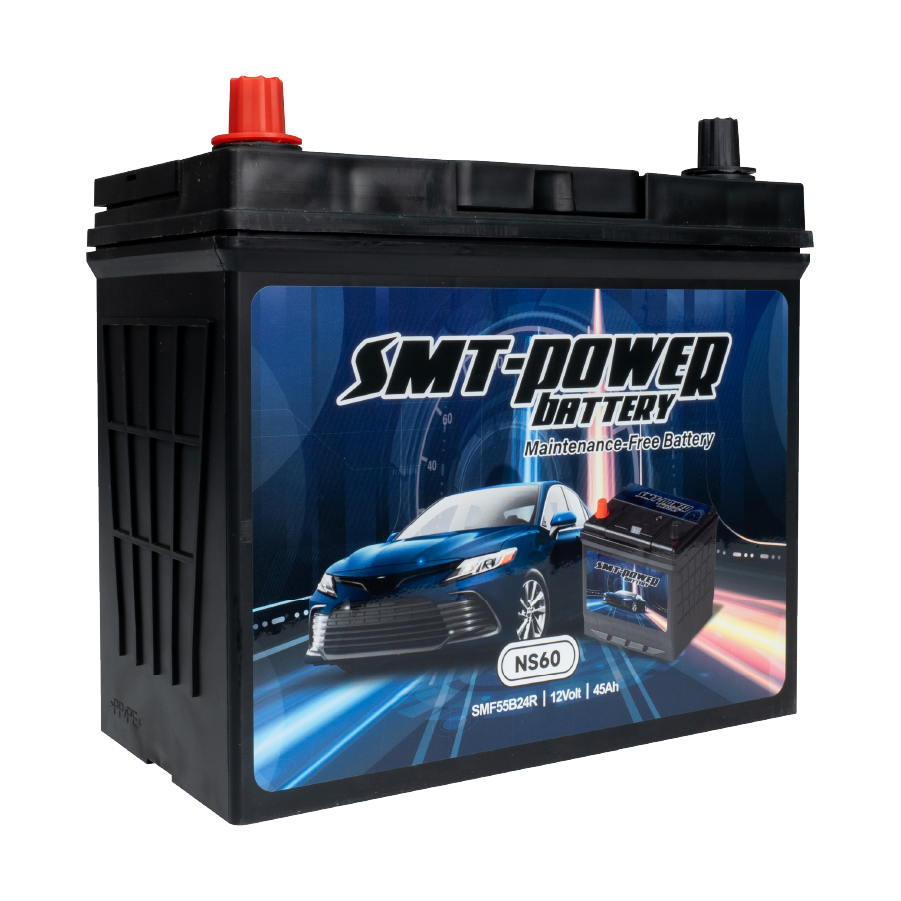

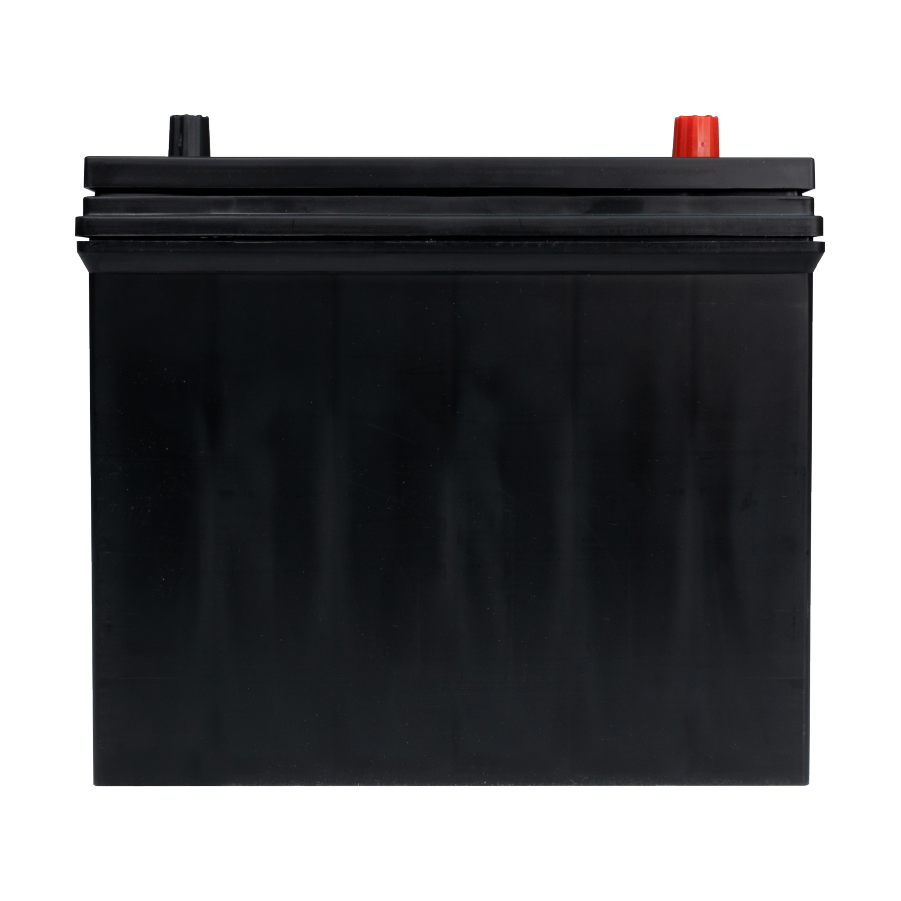

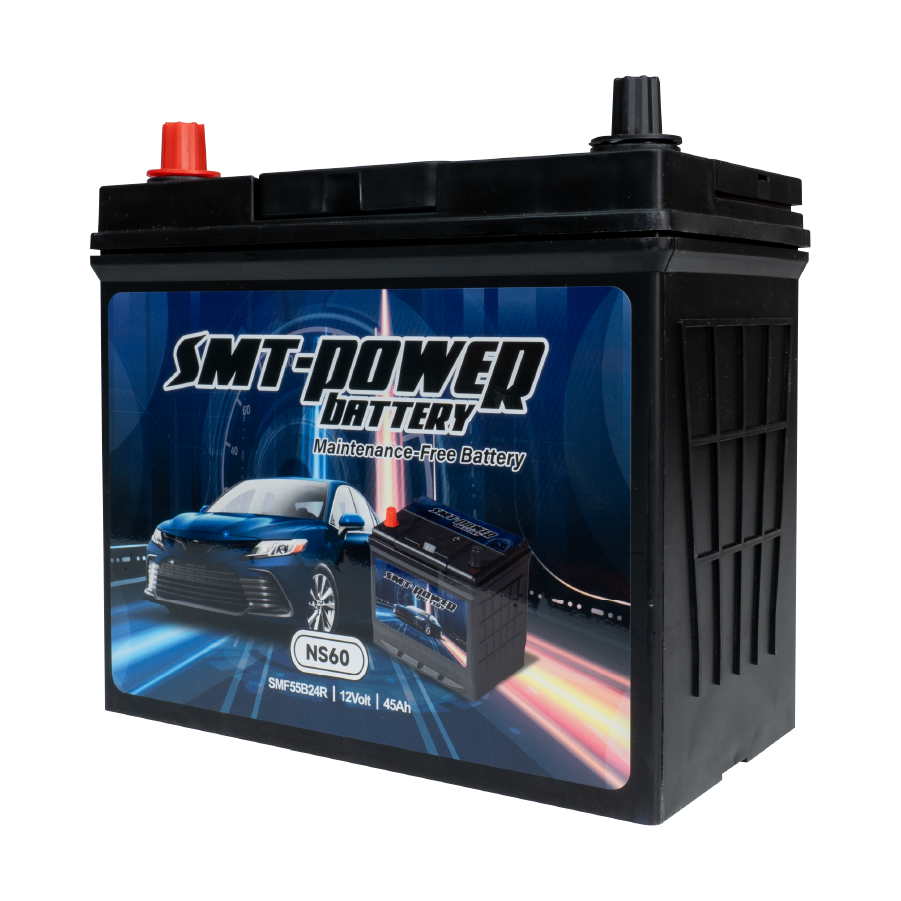

NS60
NS60
Data Sheet Product
| Model No. | NS60 |
| Nominal Voltage | 12V |
| Rated Capacity (20hr to 10.5V @ 25°C) | 45 Ah |
| Dimension | Length 237 mm Width 128 mm Height 201 mm Total Height 221 mm |
| Approx. Weight | 11.9 kg ± 3% |
| Charge Current (A) | 3.8 A (13.8V constant voltage charge) |
| Max. Charge Current | 11.4 A |
Electrical Specifications
| Capacity 25°C(77°F) | 20 hours rate (1.9 A to 10.5V) – 38 Ah 5 hours rate (7.1 A to 10.2V) – 31 Ah 1C (35.5 A to 9.6V) – 16 Ah 3C (106.5 A to 9.6V) – 12 Ah |
| Cold Cranking Amperes (-18°C) | 288 A |
| Operating Temperature Range | Charge – -40°C to 60°C Discharge – -40°C to 60°C Storage – -15°C to 40°C |
| Best Use Temperature | 10°C to 30° |
| Max. Discharge Current | 380 A |
| Reserve Capacity | 56 min @ RC to 10.5 V @ 25°C |
| Charge Retention (self-discharge life at 20ºC (68°F) | 1 month = 92% 3 month = 90% 6 month = 80% |
| Warranty | 6 month |
| Case Material | PP |
