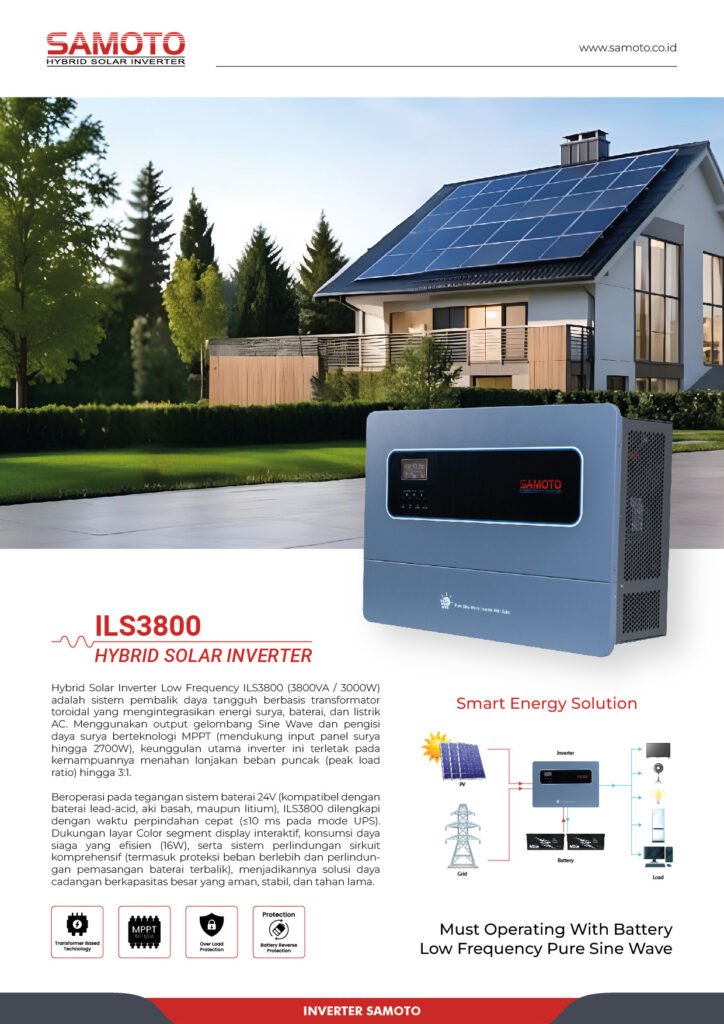

ILS 3800
ILS 3800

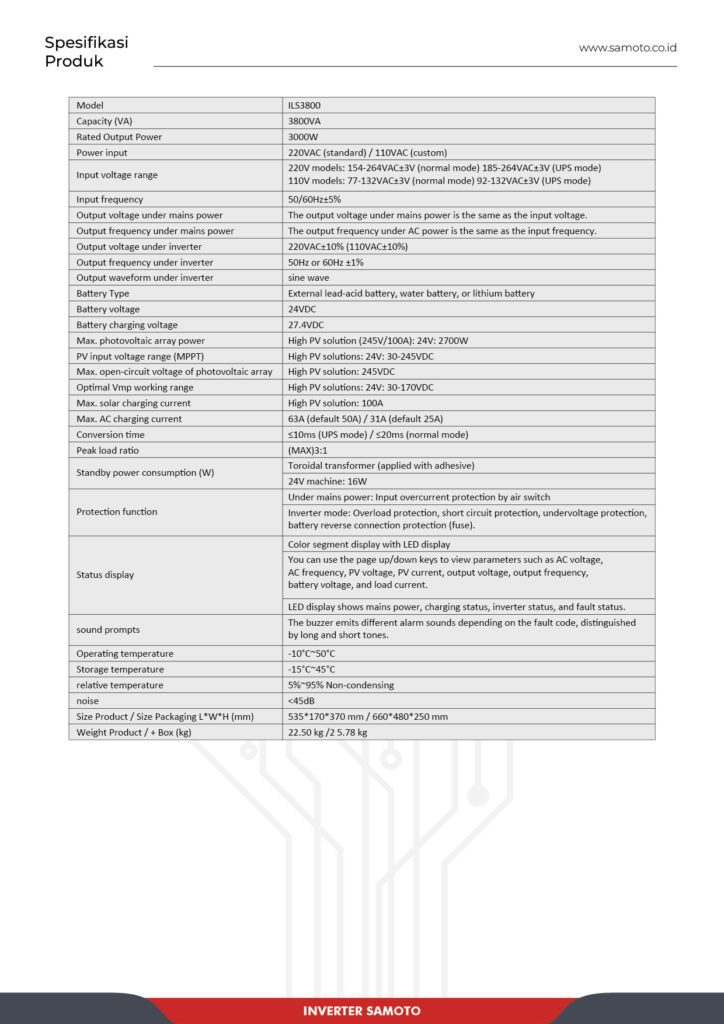

Data Sheet Product
| Model | ILS3800 |
| Capacity (VA) | 3800VA |
| Rated Output Power | 3000W |
| Power Input | 220VAC (standard) / 110VAC (customized) |
| Input Voltage | 220V model: 154-264VAC±3V (normal mode) 185-264VAC±3V (UPS mode) \110V model: 77-132VAC±3V (normal mode) 92-132VAC±3V (UPS mode) |
| Input Frequency | 50/60Hz±5% |
| Output voltage under AC power | The output voltage under AC power is the same as the input voltage |
| Output frequency under AC power | The output frequency under AC power is the same as the input frequency |
| Output voltage under inverter mode | 220VAC±10% (110VAC±10%) |
| Output waveform under inverter mode | Pure Sine Wave |
| Battery Type | External lead-acid battery or water battery or lithium battery |
| Battery Voltage | 24VDC |
| Battery charging voltage | 27.4VDC |
| Max. PV array power | 2700W |
| PV input voltage range(MPPT) | 30-245VDC |
| Optimal Vmp operating range | 30-170VDC |
| Max. photovoltaic open-circuit voltage | 245VDC |
| Max. solar charging current | 100A |
| Max. AC charging current | 38A(default30A) |
| Conversion time | ≤10ms (UPS mode) / ≤20ms (normal mode) |
| Load peak ratio | (MAX)3:1 |
| Standby power (W) | 16W |
| Protection function | Under grid power: input overcurrent circuit breaker Protection. Under inverter operation: overload protection, short circuit protection, low voltage protection, battery reverse polarity protection (fuse). |
| Status display | Color segment display with LED indicator. View parameters such as AC voltage, AC frequency, PV voltage, PV current, output voltage, output frequency, battery voltage, and load current using the page turning key. LED displays mains power, charging status, inverter status, and fault status. |
| Audible alert |
The buzzer produces different alarm sounds based on the fault codes, distinguished by long and short tones |
| Operating temperature | -10°C~50°C |
| Storage temperature | -15°C~45°C |
| Relative temperature | -10°C~90°C non-condensing |
| Noise | <45dB |
| Size L*W*H (mm) | 532*160*370 mm |
| Weight Product/+ Box (kg) | 22.50 kg/25.78 kg |
