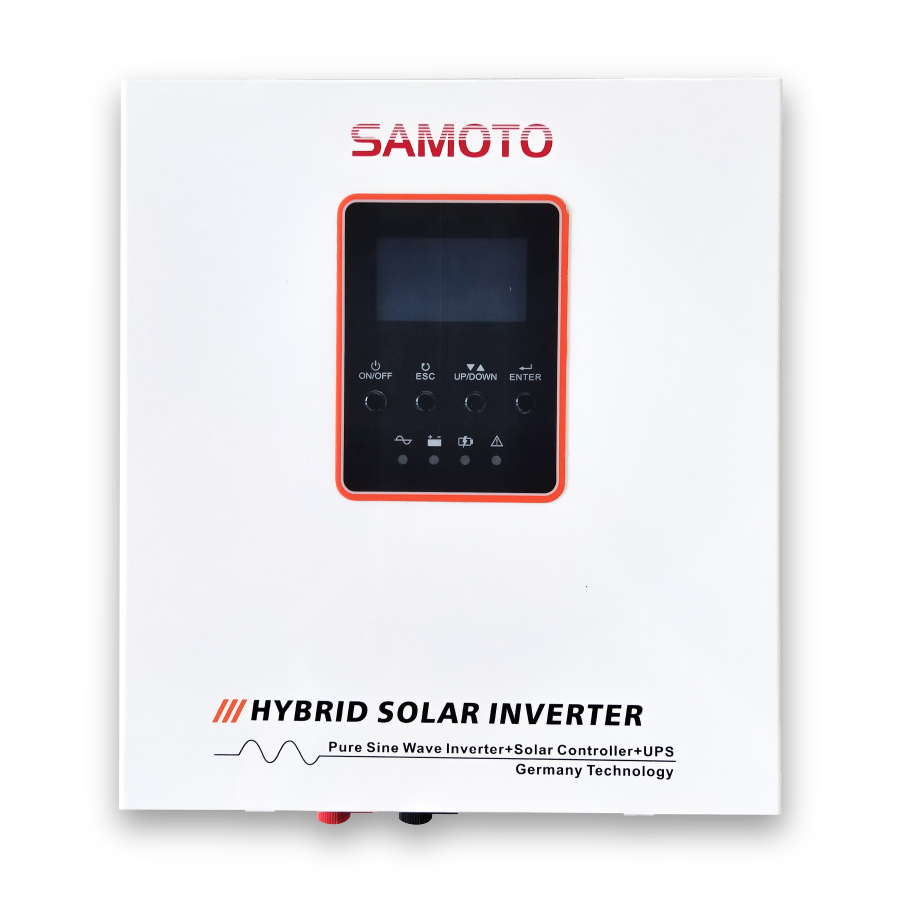

ILS 1000
ILS 1000
| Model | ILS1000 |
| Capacity (VA) | 1000A |
| Power Input | 220VAC (Standard) |
| Input Voltage Range | 154-264VAC±3V (Normal Mode) 185-264±3V (UPS Mode) 175-285VAC±3V (AVR Mode) |
| Input Frequency | 50/60HZ±5% |
| Output Rating | 800W |
| Output Voltage Under the Mains | The output voltage under mains is the same as the input voltage (200±10% with AVR function) |
| Output Frequency | The output voltage under mains is the same as the input frequency |
| Output Voltage Under Inverter | 220VAC±10% |
| Inverter Output Frequency | 50HZ or 60HZ±1% |
| Output Waveform Under Inverter | Sine Wave |
| Type of Battery | External Lead-Acid Battery or Water Battery |
| Battery Voltage | 12VDC |
| Battery Charging Voltage | 13.75VDC |
| Maximum Photovoltaic Array Power | 800W |
| Solar Input Voltage Range | PWM 15V-50VDC |
| Max. Open Circuit Voltage of Photovoltaic Display | PWM 50VDC |
| Optimum Vmp Operating Range | PWM 15V-20VDC |
| Max. Solar Charging Current | 60A |
| Max. AC Charging Current | 15A |
| Battery Charging Voltage Range | 154-280VAC |
| Transfer Time | ≤10ms (UPS Mode)/≤20ms (INV Mode) |
| Peak Load Ratio | (MAX)3:1 |
| Stand-by Power Consumption | 5W |
| Protection Function | Mains off: Input the over current protector |
| Status Display | Through the page key can view, AC Voltage, AC Frequency, PV Voltage, PV Current, Output Voltage, Output Frequency, Battery Voltage Load Current and Other Parameters |
| Auditionary Tone Cues | Low battery protection buzzer keeps ringing The low battery buzzer goes off every second The overload buzzer buzzes If the overload is less than 130% the buzzer sound every second anad turns off the output after 30S. If the overload is greather than 150% the output is turned off after 200ms The machine is faulty. The buzzer buzzes |
| Operating Temperature | -10°C~50°C |
| Storage Temperature | -15°C~45°C |
| Relative Humidity | -10°C~90°C non-condensing |
| Noise | <45dB |
| Size LxWxH (mm) | 325 x 263 x 123 mm |
| Weight Product/+ Box (kg) | 8.4 kg/9.68 kg |
