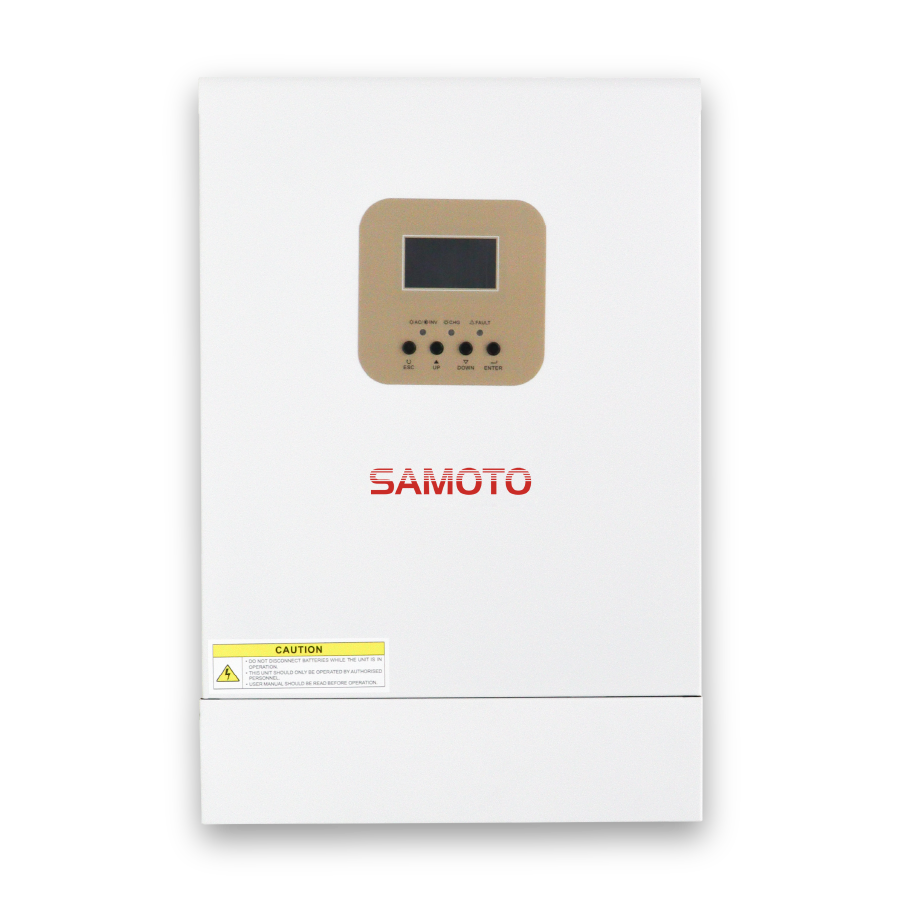

IHS 3000

IHS 3000

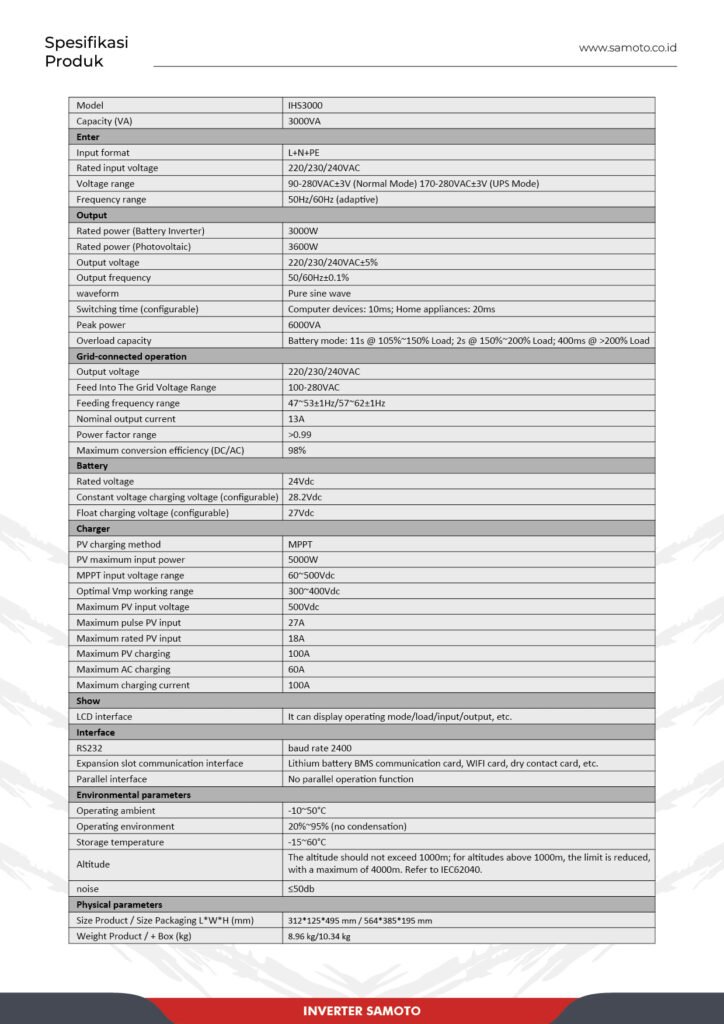

Data Sheet Product

MODEL IHS3000
Capacity (VA) 3000VA
Input Standard L+N+PE
Voltage Range 90-280VAC±3V (Normal Mode) 170-280±3V (UPS Mode)
Frequency Range 50/60HZ±5 (Adaptive)
Rated power 3000W
Output Voltage 220/230/240VAC±5%
Output Frequency 50HZ/60HZ±0.1%
Output Wave Pure sine wive
Transfer Time (Adjustable) 1010ms for computer equipment, 20ms for household equipment
Peak Power 60000VA
Overload Ability Battery Mode:
21s@105%~150% Load
11s@150%~200% Load
400ms@>200% Load
Grid Connected No grid-connected function
Rated Voltage 24VDC
Constant Charging Voltage (Adjustable) 28.2VDC
Float Charging Voltage (Adjustable) 27VDC
PV Charging Method MPPT
Max. PV Input 4200W
MPPT Input Voltage Range 60-500VDC
Optimum Vmp Operating Range 300~400VDC
Max. PV Input Voltage 500VDC
Max. PV Input Current 18A
Max.PV Charging Current 100A
Max. Mains Charging Current 100A
Max. Charging Current 100A
LCD Can display operating mode/load/input/output
RS232 Baud Rate 2400
Expansion Slot Communication Interface Lithium Battery BMS Communication Card, WIFI Card, Dry Connect Card, Etc
Parallel Interface Not Support Parallel
Operating Ambient Temperature -10°C~50°C
Operating Environment Humidity 20%-95% (no condensation)
Storage Temperature -15~60°C
Altitude The altitude should not exceed 1000m and the derating above 1000m is max. 4000m
Noise <45dB
Size LxWxH (mm) 490 x 310 x 120 mm
Weight Product/+ Box (kg) 8.96 kg/10.34 kg
Standards and Certification EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
