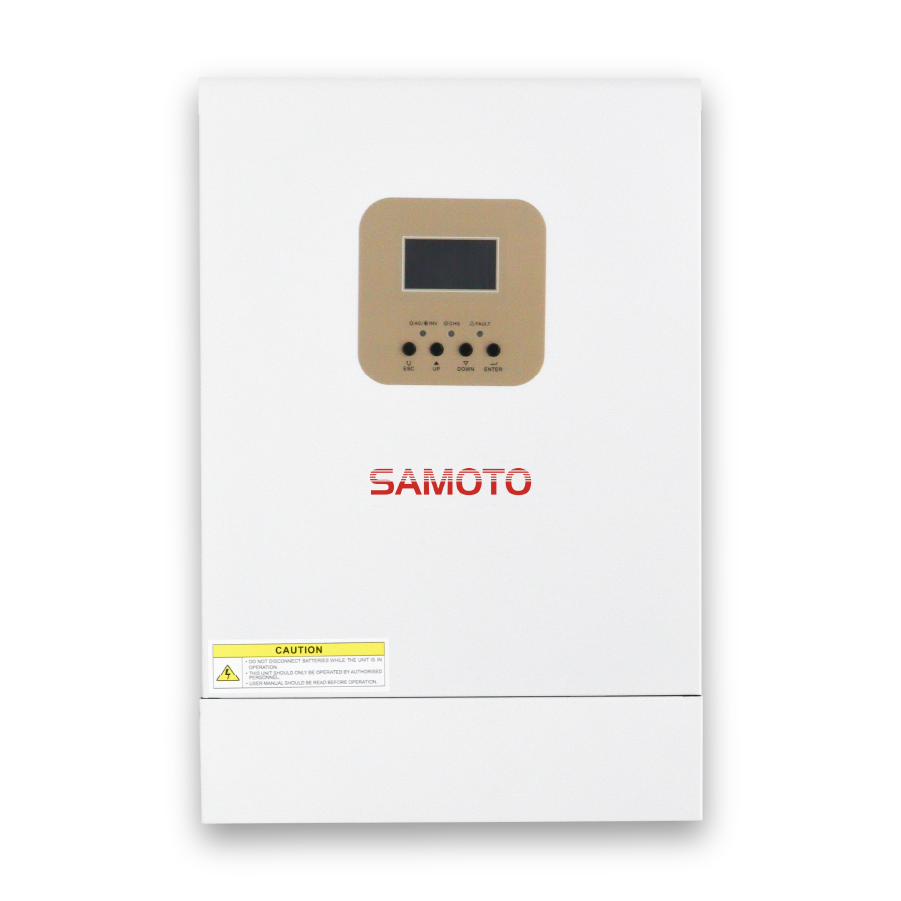

IHS 5500
IHS 5500
Data Sheet Product
| MODEL | IHS5500 |
| Capacity (VA) | 5500VA |
| Input Standard | L+N+PE |
| Rated Input Voltage | 220/230/240VAC |
| Voltage Range | 90-280VAC±3V (Normal Mode) 170-280±3V (UPS Mode) |
| Frequency Range | 50/60HZ±5 (Adaptive) |
| Rated power | 5500W |
| Output Voltage | 220/230/240VAC±5% |
| Output Frequency | 50HZ/60HZ±0.1% |
| Output Wave | Pure Sine Wave |
| Transfer Time (Adjustable) | 10ms for computer equipment, 20ms for household equipment |
| Peak Power | 11000VA |
| Overload Ability | Battery Mode: 21s@105%~150% Load 11s@150%~200% Load 400ms@>200% Load |
| Output Voltage | 220/230/240VAC |
| Fead Into the Grid Voltage Range | 195-253VA |
| Fead Into the Grid Frequency Range | 49-51±1Hz/59-61±Hz |
| Normal Output Current | 23.9A |
| Power Factor Range | >0.99 |
| Max. Conversion Efficiency (DC/AC) | 0.98 |
| Rated Voltage | 48VDC |
| Constant Charging Voltage (Adjustable) | 56.4VDC |
| Float Charging Voltage (Adjustable) | 54VDC |
| PV Charging Method | MPPT |
| Max. PV Input | 5500W |
| MPPT Input Voltage Range | 60-500VDC |
| Optimum Vmp Operating Range | 300~400VDC |
| Max. PV Input Voltage | 500VDC |
| Max. PV Input Current | 18A |
| Max. PV Charging Current | 100A |
| Max. Mains Charging Current | 60A |
| Max. Charging Current | 100A |
| LCD | Can display operating mode/load/input/output |
| RS232 | Baud Rate 2400 |
| Expansion Slot Communication Interface | Lithium battery BMS communication card, Wifi card, dry connect card, etc |
| Parallel Interface | Support Parallel |
| Operating Ambient Temperature | -10°C~50°C |
| Operating Environment Humidity | 20%-95% (No Condensation) |
| Storage Temperature | -15°C~60°C |
| Altitude | The altitude should not exceed 1000m and the derating above 1000m is max.4000m |
| Noise | <50dB |
| Size L x W x H (mm) | 490 x 310 x 120 mm |
| Weight Product/+ Box (kg) | 10.36 kg / 11.92 kg |
| Standards and Certification | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 |
