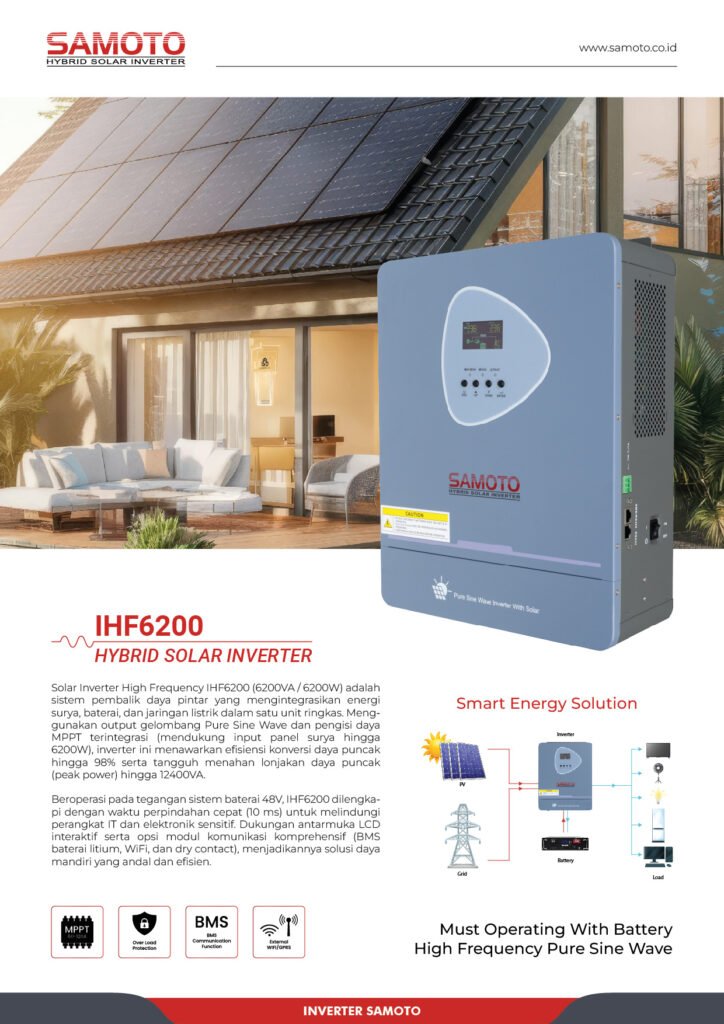

IHF 6200
IHF 6200

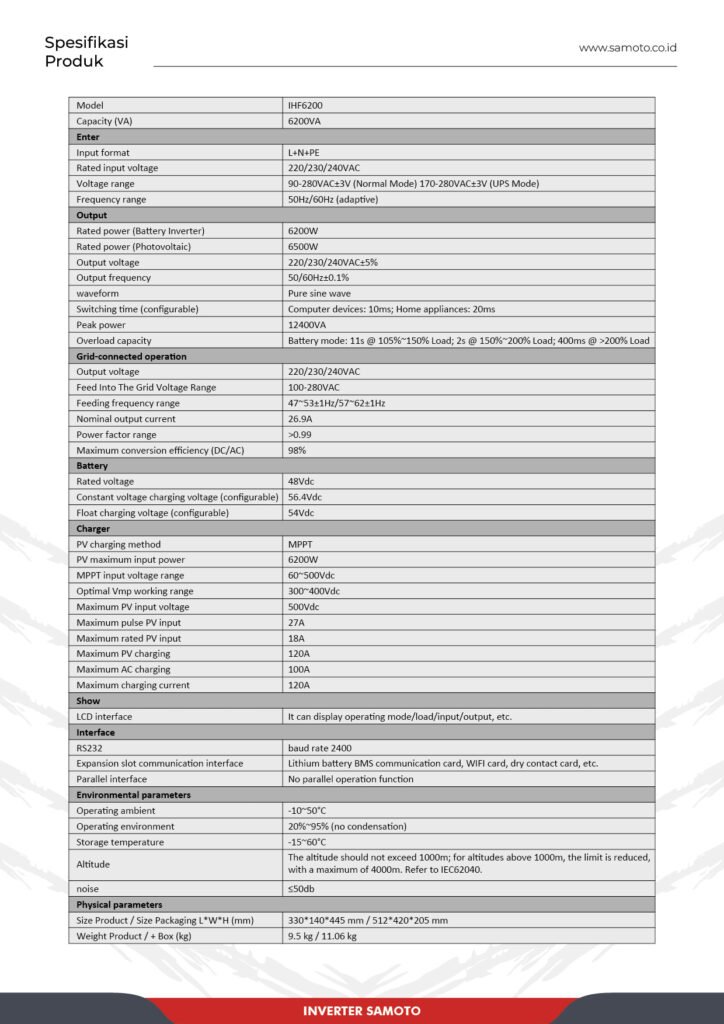

Data Sheet Product
| Model | IHF6200 |
| Capacity (VA) | 6200 VA |
| Input Standard | L+N+PE |
| Rated Input Voltage | 220/230/240VAC |
| Voltage Range | 90-280VAC±3V (normal mode) 170-280VAC±3V (UPS mode) |
| Frequency Range | 50/60Hz (Auto Adaptive) |
| The Battery Invers | 6200 W |
| Photovoltaic Inverter | 6500 W |
| Peak Power | 12400 VA |
| Output Voltage | 220/230/240VAC±5% |
| Output Frequency | 50/60Hz±0.1% |
| Waveform | Pure Sine Wive |
| Switch Time (adjustable) | Computer equipment 10ms, home appliance 20ms |
| Overload Capacity | Battery mode 11s@105%~150% Load;2s@150%~200% Load; 400ms@>200% Load |
| Output Voltage | 220/230/240VAC |
| Grid Feeding Voltage Range | 195-253VA |
| Grid Feeding Frequency Range | 49-51±1Hz/59-61±1Hz |
| Nominal Output current | 26.9A |
| Power Factor Range | >0.99 |
| Max. Conversion Efficiency (DC/AC) | 98% |
| Battery Voltage | 48VDC |
| Constant Charging Voltage (adjustable) | 56.4VDC |
| Floate Charging Voltage (adjustable) | 54VDC |
| PV Charging Method | MPPT |
| Max. Input Power of PV | 7500W |
| MPPT Tracking Range | 60-500VDC |
| Best Voltage | 300~400VDC |
| Max. PV Input Voltage | 500VDC |
| Max. PV Input Current | 27A |
| Max. PV Charging Current | 120A |
| Max. AC Charging Current | 100A |
| Max. Charging Current | 120A |
| LCD Interface | CAN display running mode/load/input/output, etc. |
| RS232 | Baud Rate 2400 |
| Extend the Socket Communication Interface | Lithium battery BMS communication card, WIFI card, Dry contact card, etc. |
| Parallel Machine Interface | No Parallel funtion |
| Operating Temperature | -10°C~50°C |
| Humidity | 20%-95% (no condensation) |
| Storage Temperature | -15~+60°C |
| Altitude | Altitude not over 1000m, Derating over 1000m, Max. 4000m, Rever to IEC62040 |
| Noise | ≤50db |
| Size L*W*H (mm) | 330*140*445 mm |
| Weight Product/+ Box (kg) | 9.5 kg/11.06 kg |
