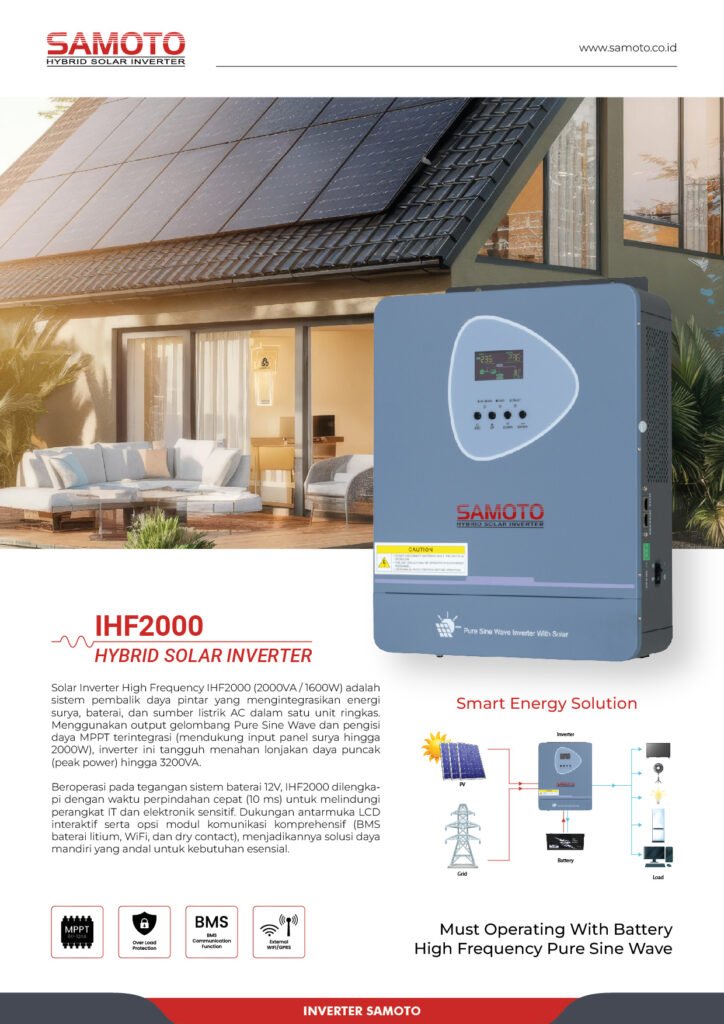

IHF 2000
IHF 2000

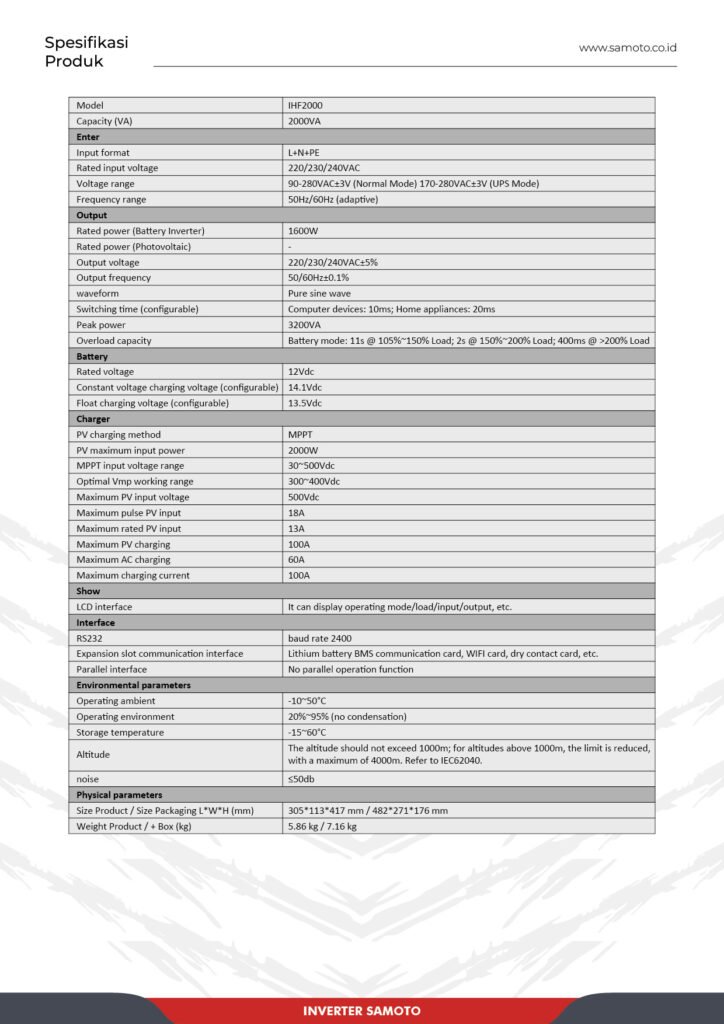

Data Sheet Product
| Model | IHF2000 |
| Capacity (VA) | 2000VA |
| Input Standard | L+N+PE |
| Rated Input Voltage | 220/230/240VAC |
| Voltage Range | 90-280VAC±3V (normal mode) 170-280VAC±3V (UPS mode) |
| Frequency Range | 50/60Hz (Auto Adaptive) |
| The Battery Invers | 1600W |
| Photovoltaic Inverter | 1600W |
| Peak Power | 3200VA |
| Output Voltage | 220/230/240VAC±5% |
| Output Frequency | 50/60Hz±0.1% |
| Waveform | Pure Sine Wive |
| Switch Time (adjustable) | Computer equipment 10ms, home appliance 20ms |
| Overload Capacity | Battery mode 11s@105%~150% Load;2s@150%~200% Load; 400ms@>200% Load |
| Rated Voltage | 12VDC |
| Constant Charging Voltage (configurable) | 14.1VDC |
| Floate Charging Voltage (adjustable) | 13.5VDC |
| PV Charging Method | MPPT |
| Max. Input Power of PV | 2000W |
| MPPT Input Voltage Range | 40~500VDC |
| Optimal Vmp Operating Range | 300~400VDC |
| Max. PV Input Voltage | 500VDC |
| Max. PV Input Current | 13A |
| Max. PV Charging Current | 100A |
| Max. Mains Charging Current | 60A |
| Max. Charging Current | 100A |
| LCD Interface | CAN display running mode/load/input/output, etc. |
| RS232 | Baud Rate 2400 |
| Expansion Slot Communication Interface | Lithium battery BMS communication card, WIFI card, dry contact card, etc. |
| Parallel Machine Interface | No Parallel funtion |
| Operating Temperature | -10°C~50°C |
| Humidity | 20%-95% (no condensation) |
| Storage Temperature | -15~+60°C |
| Noise | ≤45db |
| Size L*W*H (mm) | 305*113*417 mm |
| Weight Product/+ Box (kg) | 5.86 kg/7.16 kg |
