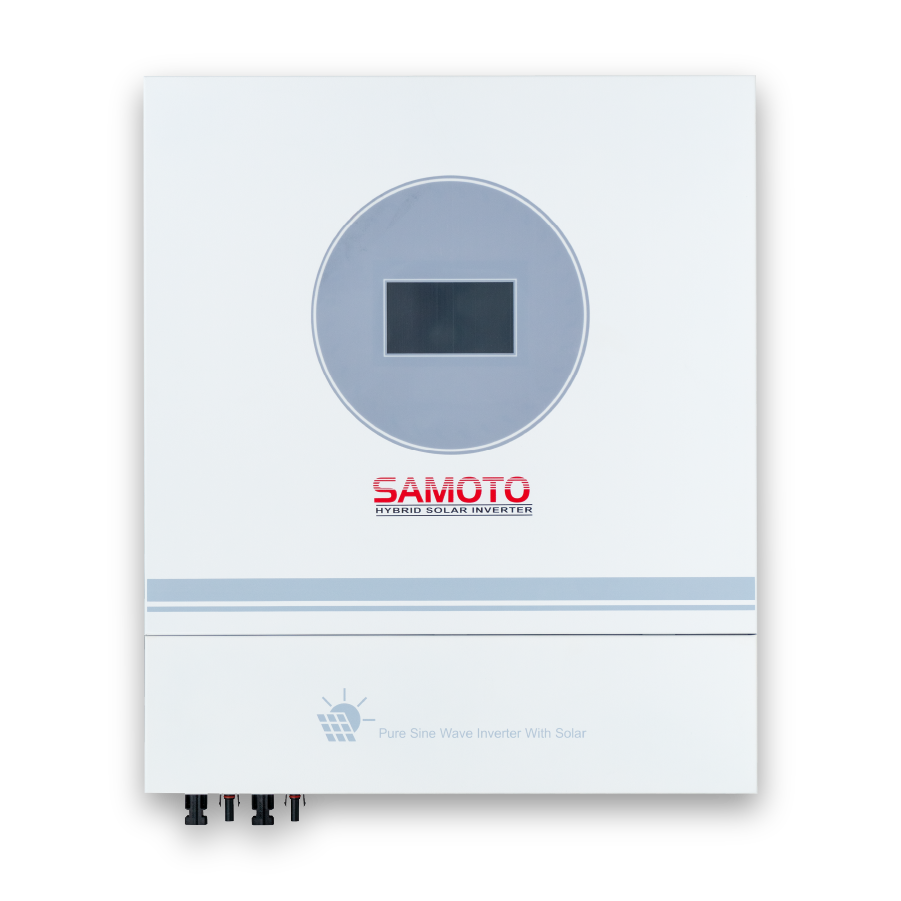

IHB 11000

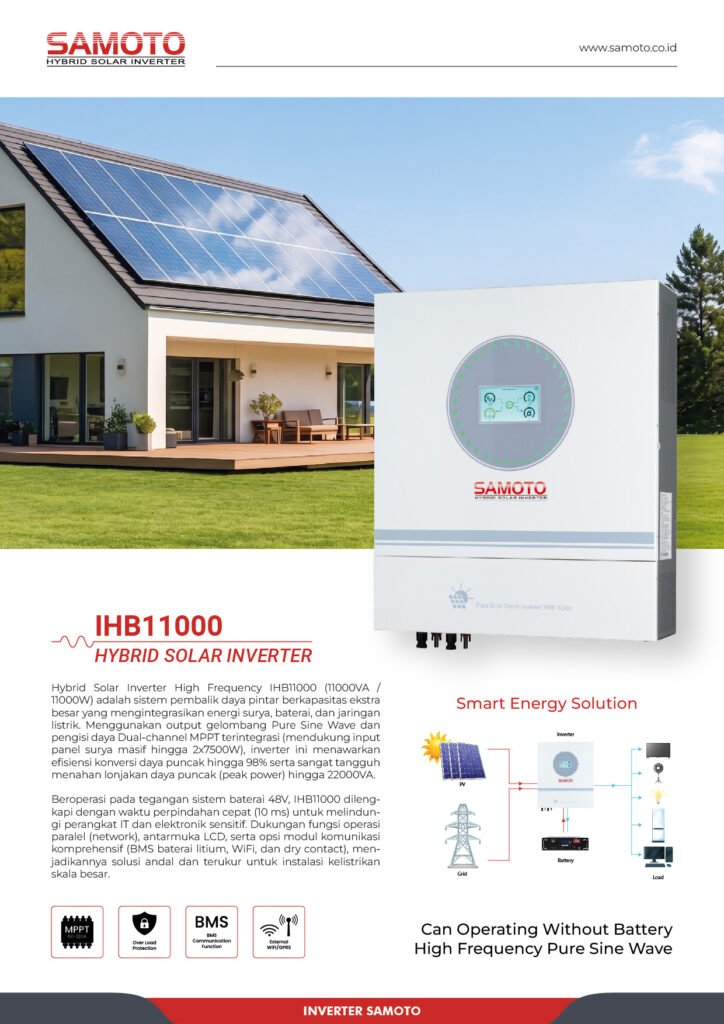

IHB 11000 dari Samoto Mega Teknologi Indonesia adalah inverter hybrid premium 11.000VA dengan mode on-grid/off-grid, MPPT internal, dan output pure sine wave. Cocok untuk beban besar dan peralatan sensitif. Garansi resmi 1 tahun, dapatkan sekarang. Pelajari lebih lanjut tentang Solusi Lengkap untuk Sistem PLTS yang Efisien dan Handal di artikel ini.
IHB 11000

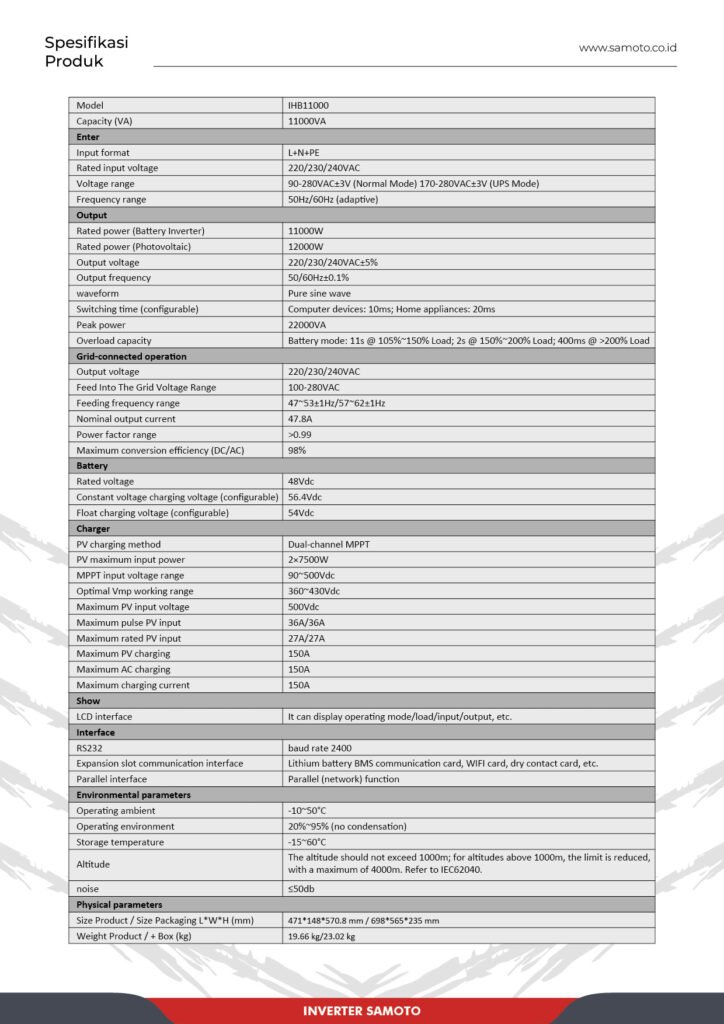

Data Sheet Product
| Model | IHB11000 |
| Capacity (VA) | 11000VA |
| ENTER | |
| Input format | L+N+PE |
| Rated Input Voltage | 220/230/240VAC |
| Voltage Range | 90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode) |
| Frequency Range | 50/60Hz (Adaptive) |
| Output | |
| Rated power (Battery Inverter) | 11000W |
| Rated power (Photovoltaic) | 12000W |
| Output Voltage | 220/230/240VAC±5% |
| Output Frequency | 50/60Hz±0.1% |
| Waveform | Pure Sine Wive |
| Transfer Time (configurable) | Computer devices: 10ms; Home appliances: 20ms |
| Peak Power | 12400VA |
| Overload capacity | Battery mode: 11s @ 105%~150% Load; 2s @ 150%~200% Load; 400ms @ >200% Load |
| Grid-connected operation | |
| Output voltage | 220/230/240VAC |
| Feed Into The Grid Voltage Range | 100-280VAC |
| Feeding frequency range | 47~53±1Hz/57~62±1Hz |
| Nominal output current | 47.8A |
| Power factor range | >0.99 |
| Maximum conversion efficiency (DC/AC) | 98% |
| Battery | |
| Rated voltage | 48Vdc |
| Constant voltage charging voltage (configurable) | 56.4Vdc |
| Float charging voltage (configurable) | 54Vdc |
| charger | |
| PV charging method | Dual-channel MPPT |
| PV maximum input power | 2×7500W |
| MPPT input voltage range | 90~500Vdc |
| Optimal Vmp working range | 360~430Vdc |
| Maximum PV input voltage | 500Vdc |
| Maximum pulse PV input | 36A/36A |
| Maximum rated PV input | 27A/27A |
| Maximum PV charging | 150A |
| Maximum AC charging | 150A |
| Maximum charging current | 150A |
| show | |
| LCD interface | It can display operating mode/load/input/output, etc. |
| interface | |
| RS232 | baud rate 2400 |
| Expansion slot communication interface | Lithium battery BMS communication card, WIFI card, dry contact card, etc. |
| Parallel interface | Parallel (network) function |
| Environmental parameters | |
| Operating ambient | -10~50°C |
| Operating environment | 20%~95% (no condensation) |
| Storage temperature | -15~60°C |
| Altitude | The altitude should not exceed 1000m; for altitudes above 1000m, the limit is reduced, with a maximum of 4000m. Refer to IEC62040. |
| noise | ≤50db |
| Physical parameters | |
| Size Product / Size Packaging L*W*H (mm) | 471*148*570.8 mm / 698*565*235 mm |
| Weight Product / + Box (kg) | 19.66 kg/23.02 kg |
