HG62000

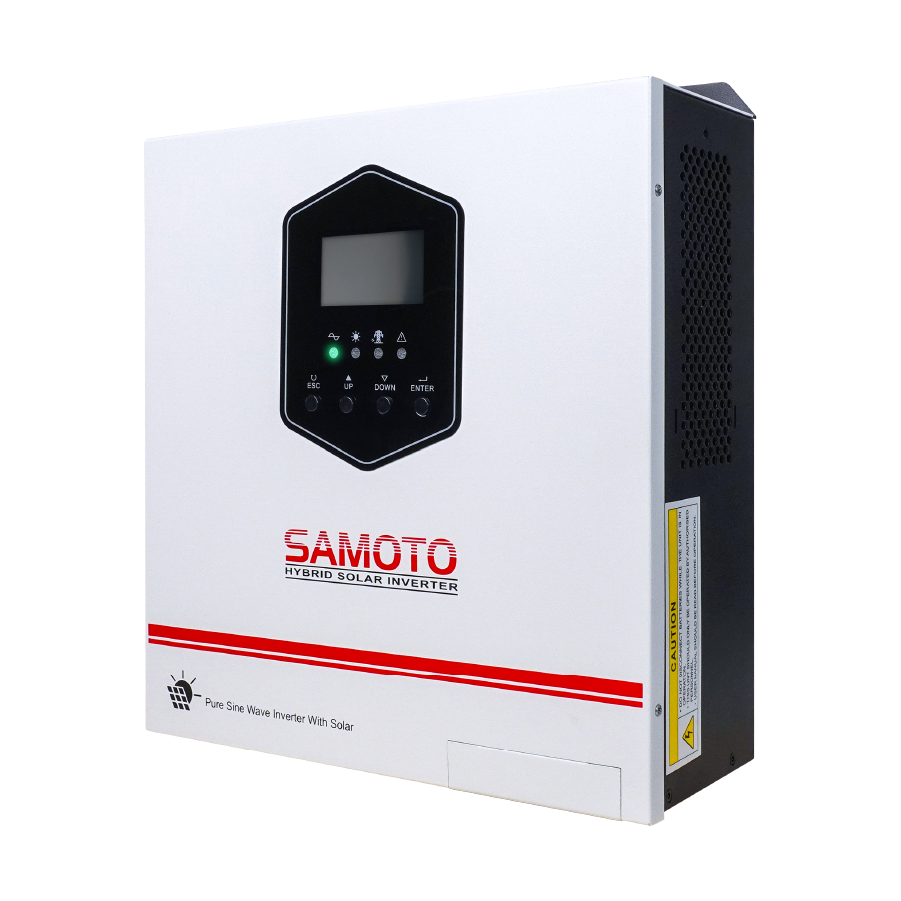

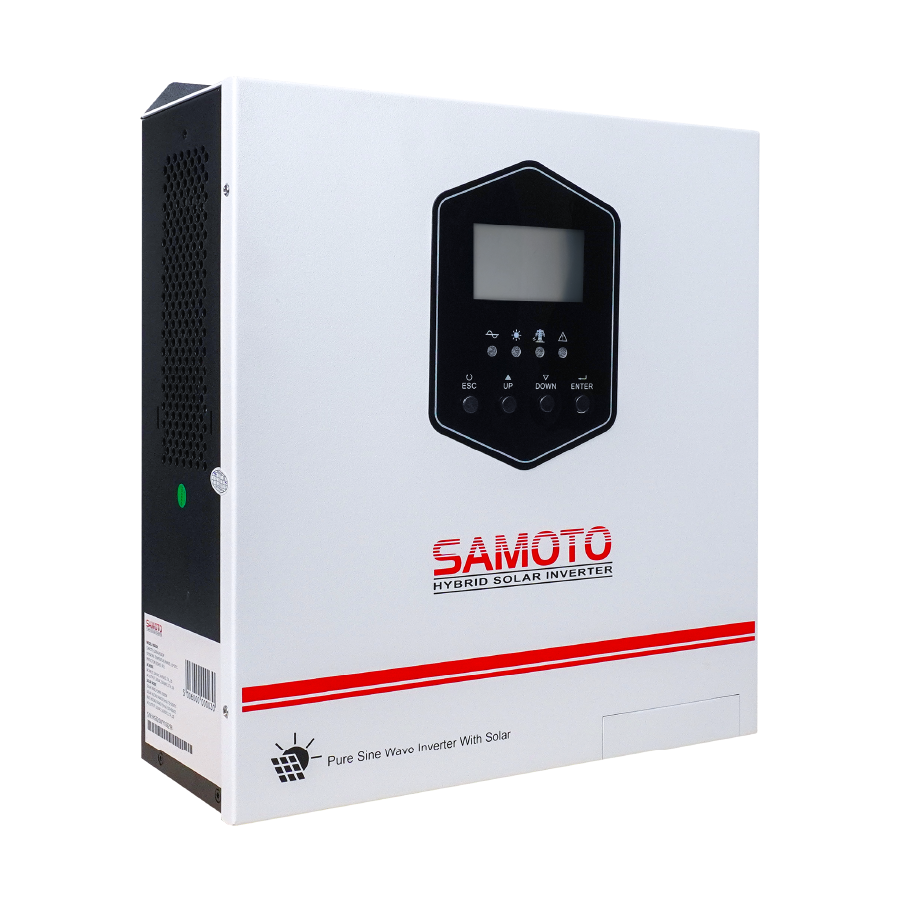

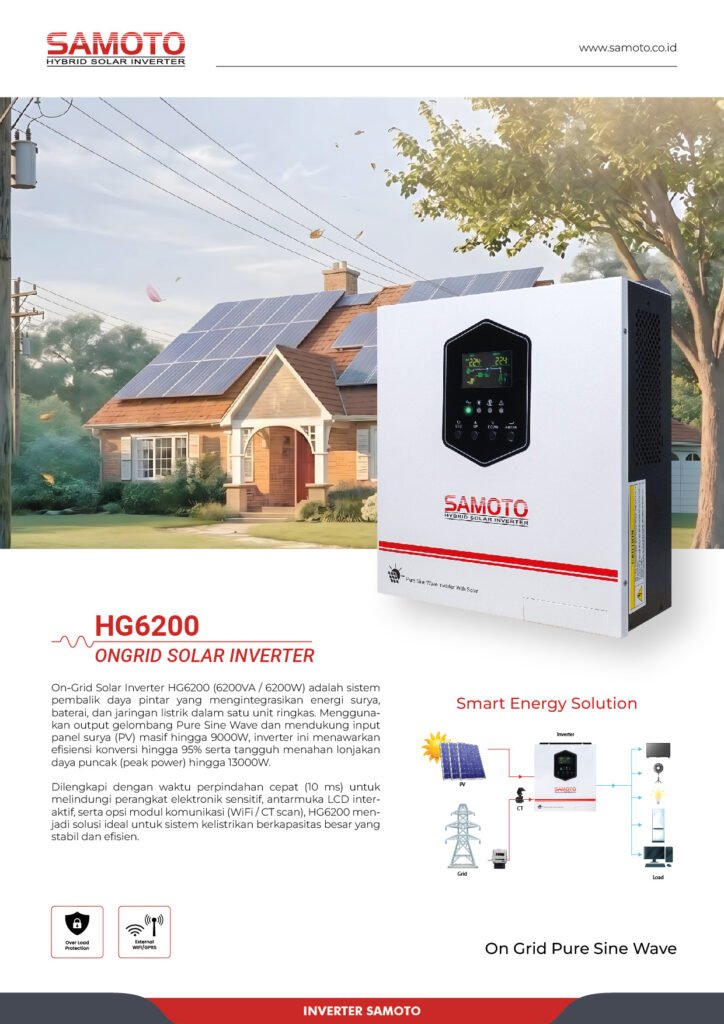

On-Grid Solar Inverter HG6200 (6200VA / 6200W) adalah sistem pembalik daya pintar yang mengintegrasikan energi surya, baterai, dan jaringan listrik dalam satu unit ringkas. Menggunakan output gelombang Pure Sine Wave dan mendukung input panel surya (PV) masif hingga 9000W, inverter ini menawarkan efisiensi konversi hingga 95% serta tangguh menahan lonjakan daya puncak (peak power) hingga 13000W.
Dilengkapi dengan waktu perpindahan cepat (10 ms) untuk melindungi perangkat elektronik sensitif, antarmuka LCD interaktif, serta opsi modul komunikasi (WiFi / CT scan), HG6200 menjadi solusi ideal untuk sistem kelistrikan berkapasitas besar yang stabil dan efisien.
HG62000

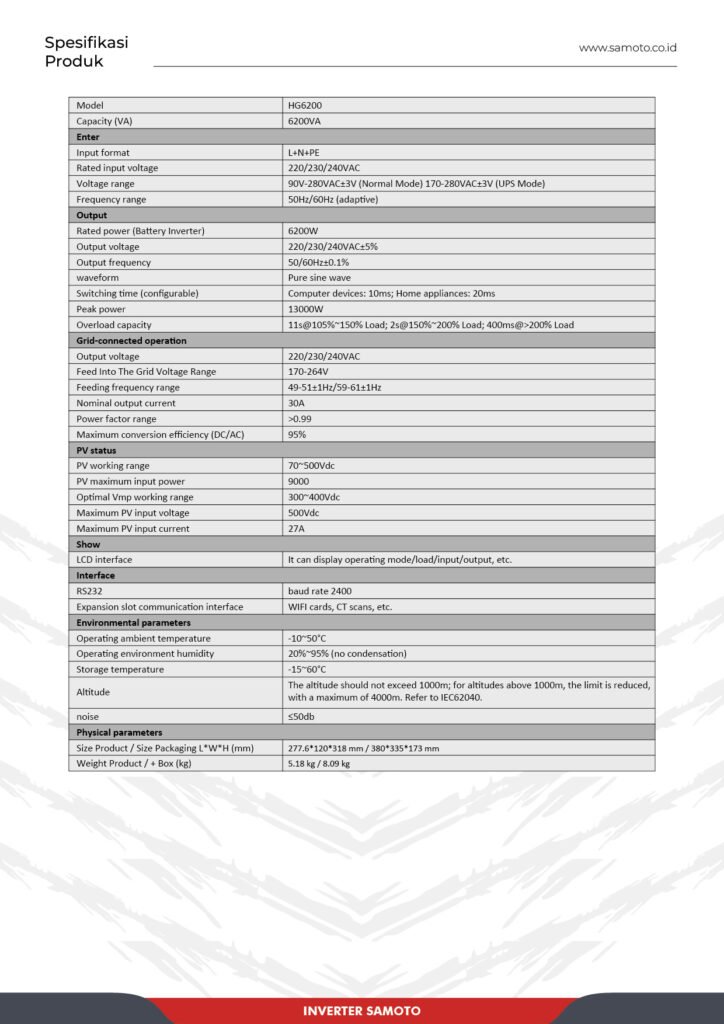

Data Sheet Product
| Model | HG6200 |
| Capacity (VA) | 6200VA |
| ENTER | |
| Input format | L+N+PE |
| Rated Input Voltage | 220/230/240VAC |
| Voltage Range | 90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode) |
| Frequency Range | 50/60Hz (Adaptive) |
| Output | |
| Rated power (Battery Inverter) | 6200W |
| Output Voltage | 220/230/240VAC±5% |
| Output Frequency | 50/60Hz±0.1% |
| Waveform | Pure Sine Wive |
| Transfer Time (configurable) | Computer devices: 10ms; Home appliances: 20ms |
| Peak Power | 13000W |
| Overload capacity | 11s @ 105%~150% Load; 2s @ 150%~200% Load; 400ms @ >200% Load |
| Grid-connected operation | |
| Output voltage | 220/230/240VAC |
| Feed Into The Grid Voltage Range | 170-264V |
| Feeding frequency range | 49-51±1Hz/59-61±1Hz |
| Nominal output current | 30A |
| Power factor range | >0.99 |
| Maximum conversion efficiency (DC/AC) | 95% |
| PV status | |
| PV working range | 70~500Vdc |
| PV maximum input power | 9000 |
| Optimal Vmp working range | 300~400Vdc |
| Maximum PV input voltage | 500Vdc |
| Maximum PV input current | 27A |
| show | |

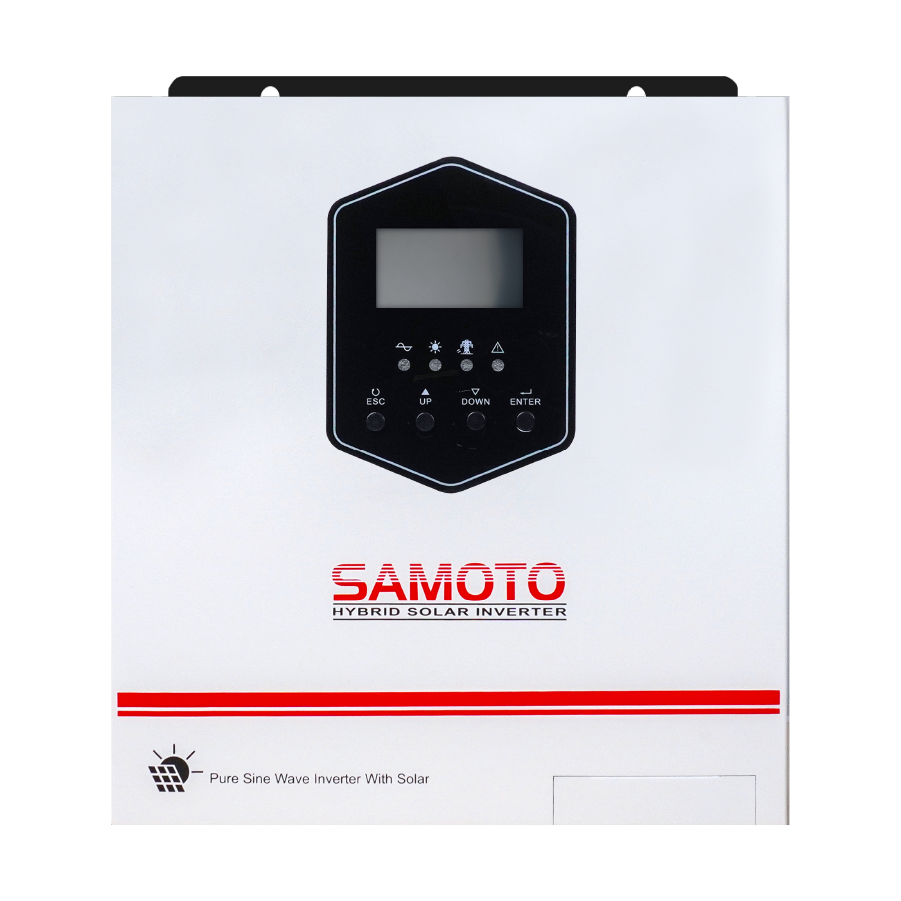

| LCD interface | It can display operating mode/load/input/output, etc. |
| interface | |

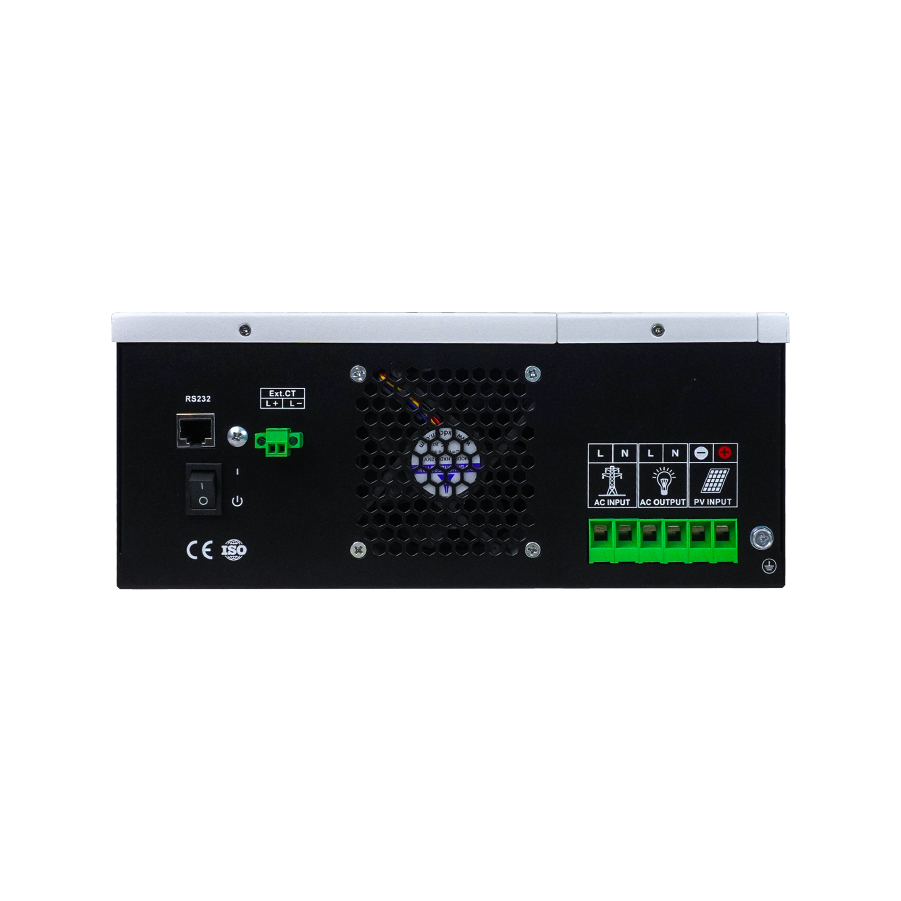

| RS232 | baud rate 2400 |
| Expansion slot communication interface | WIFI cards, CT scans, etc. |
| Environmental parameters | |
| Operating ambient | -10~50°C |
| Operating environment | 20%~95% (no condensation) |
| Storage temperature | -15~60°C |
| Altitude | The altitude should not exceed 1000m; for altitudes above 1000m, the limit is reduced, with a maximum of 4000m. Refer to IEC62040. |
| noise | ≤50db |
| Physical parameters | |
| Size Product / Size Packaging L*W*H (mm) | 277.6*120*318 mm / 380*335*173 mm |
| Weight Product / + Box (kg) | 5.18 kg / 8.09 kg |
