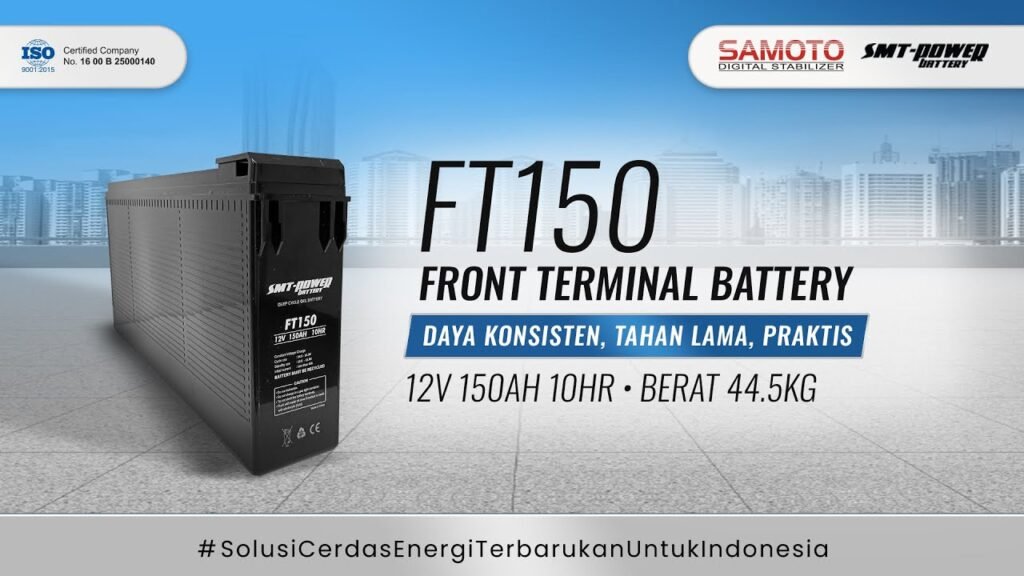

FT150
FT150
Data Sheet Product
| Nominal Voltage | 12V |
| Nominal Capacity | 150 Ah |
| Dimension | Length = 561 mm ± 1mm Width = 111 mm ± 1mm Height = 287 mm ± 1mm Total Height (with Terminal) = 296 mm ± 1mm |
| Approx. Weight | Approx ± 44.5 kg |
| Terminal | T13 |
| Container Material | ABS |
| Rated Capacity | 157.7 AH/7.88A – (20hr, 1.80V/cell,25°C/77°F) 150.0 AH/15.0A – (10hr, 1.80V/cell,25°C/77°F) 143.5 AH/17.9A – (8hr, 1.80V/cell,25°C/77°F) 134.0 AH/26.8A – (5hr, 1.75V/cell,25°C/77°F) 99.3 AH/99.3A – (1hr, 1.67V/cell,25°C/77°F) |
| Max. Discharge Current | 1200A (5s) |
| Internal Resistance | Approx 3.0m |
| Operating Temperature Range | Discharge = -20~60°C(-4~140°F) Charge = -10~40°C(14~144°F) Storage = -20~60°C(4~140°F) |
| Nominal Operating Temperature Range | 25 ± 3°C (77±5°F) |
| Cycle Use | Initial Charging Current less than 45A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Stand by Use | No limit on initial Charging Current Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Temperature | 40ºC (104ºF) = 103% 25º (77ºF) = 100% 0º (32ºF) = 86% |
| Self Discharge | FT Series battery may be stored for up to 6 months at 25ºC(77ºf) and battery should be recharge before use. For higher temperatures the time interval will be shorter |
