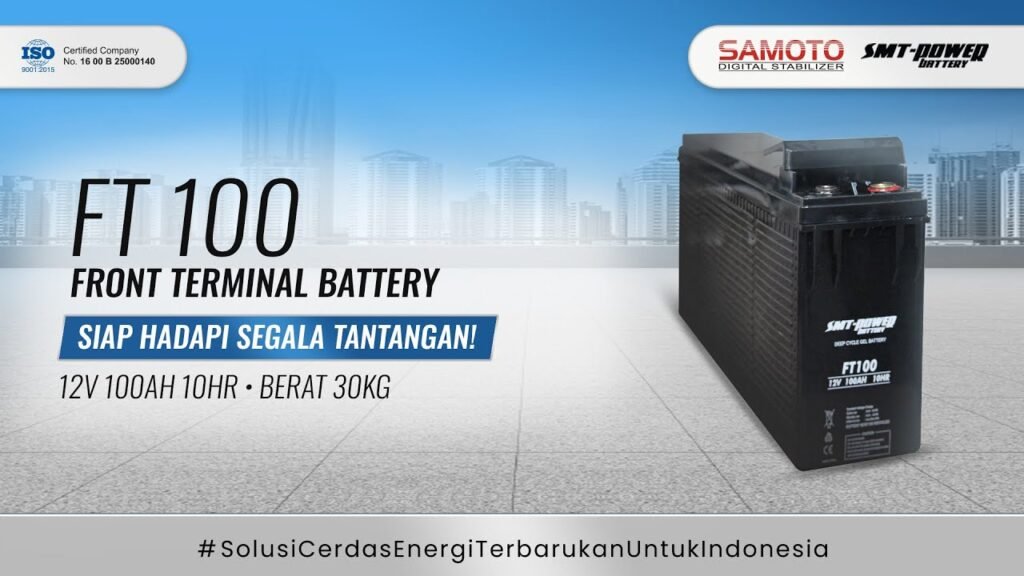

FT100
FT100
Data Sheet Product
| Nominal Voltage | 12V |
| Nominal Capacity | 100 Ah |
| Dimension | Length = 507 mm ± 1mm Width = 111 mm ± 1mm Height = 222 mm ± 1mm Total Height (with Terminal) = 233 mm ± 1mm |
| Approx. Weight | Approx ± 30 kg |
| Terminal | T13 |
| Container Material | ABS |
| Rated Capacity | 105.2 AH/5.26A – (20hr, 1.80V/cell,25°C/77°F) 100.0 AH/10.0A – (10hr, 1.80V/cell,25°C/77°F) 90.3 AH/11.3A – (8hr, 1.80V/cell,25°C/77°F) 84.1 AH/16.8A – (5hr, 1.75V/cell,25°C/77°F) 60.8 AH/60.8A – (1hr, 1.67V/cell,25°C/77°F) |
| Max. Discharge Current | 1000A (5s) |
| Internal Resistance | Approx 4.3m |
| Operating Temperature Range | Discharge = -20~60°C(-4~140°F) Charge = -10~40°C(14~144°F) Storage = -20~60°C(4~140°F) |
| Nominal Operating Temperature Range | 25 ± 3°C (77±5°F) |
| Cycle Use | Initial Charging Current less than 30.0A. Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Stand by Use | No limit on initial Charging Current Voltage 14.4V~15.0V at 25°C(77°F) Temp. Coefficient -30mV/°C |
| Temperature | 40ºC (104ºF) = 103% 25º (77ºF) = 100% 0º (32ºF) = 86% |
| Self Discharge | FT Series battery may be stored for up to 6 months at 25ºC(77ºf) and battery should be recharge before use. For higher temperatures the time interval will be shorter |
