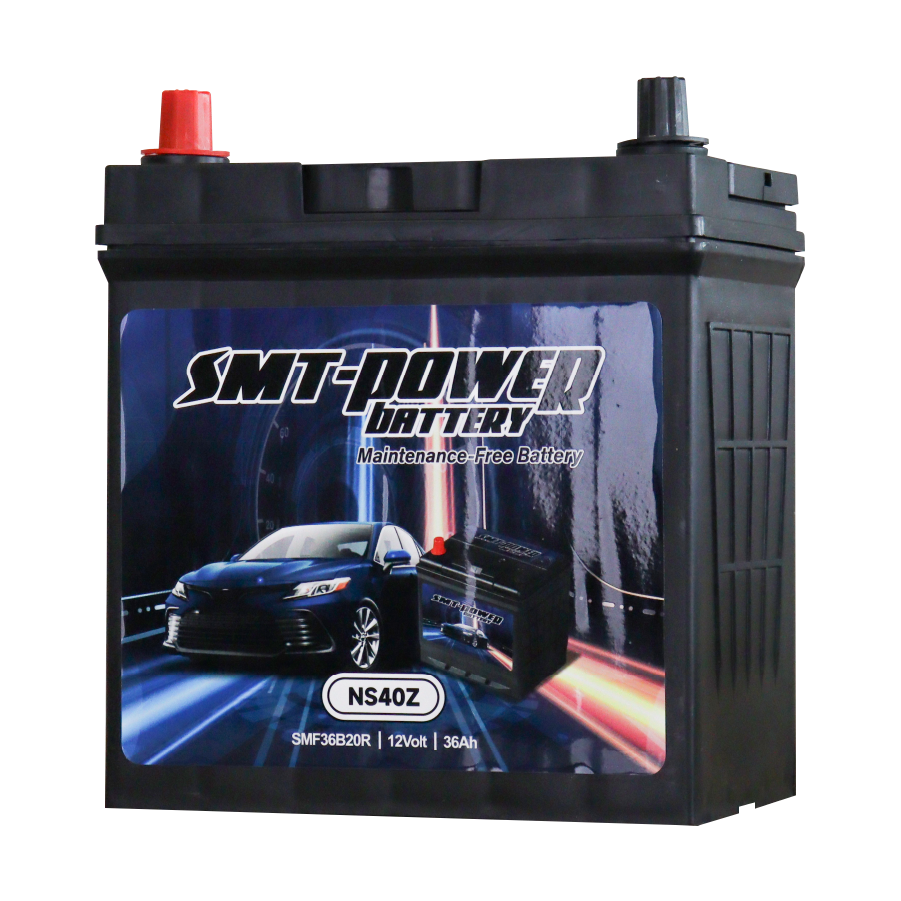

NS40Z
NS40Z
Data Sheet Product
| Model No. | NS40Z |
| Nominal Voltage | 12V |
| Rated Capacity (10 hours rate) | 36 Ah |
| Dimension | Length 196 mm Width 128 mm Height 202 mm Total Height 222 mm |
| Approx. Weight | 10 kg±3% |
| Charge Current (A) | 03.2 A (13.8V constant voltage charge) |
| Max. Charge Current | 9.6 A |
Electrical Specifications
| Capacity | 20 hours rate (1.6 A to 10.5V) – 32 Ah 5 hours rate (6 A to 10.2V) – 26 Ah 1C (30 A to 9.6V) – 15 Ah 3C (180 A to 9.6V) – 10 Ah |
| Cold Cranking Amperes (-18°C) | 248 A |
| Operating Temperature Range | Charge – -40°C to 60°C Discharge – -40°C to 60°C(122ºF) Storage – -15°C to 40°C |
| Best Use Temperature | 10°C to 30° |
| Max. Discharge Current | 320 A |
| Reserve Capacity | 45 min @ RC to 10.5 V @ 25°C |
| Charge Retention (self-discharge life at 20ºC (68°F) | 1 month = 92% 3 month = 90% 6 month = 80% |
| Warranty | 6 month |
| Case Material | PP |
